When simulating the water hammer effect in pipelines, why are cast steel valves more resistant than cast iron valves?

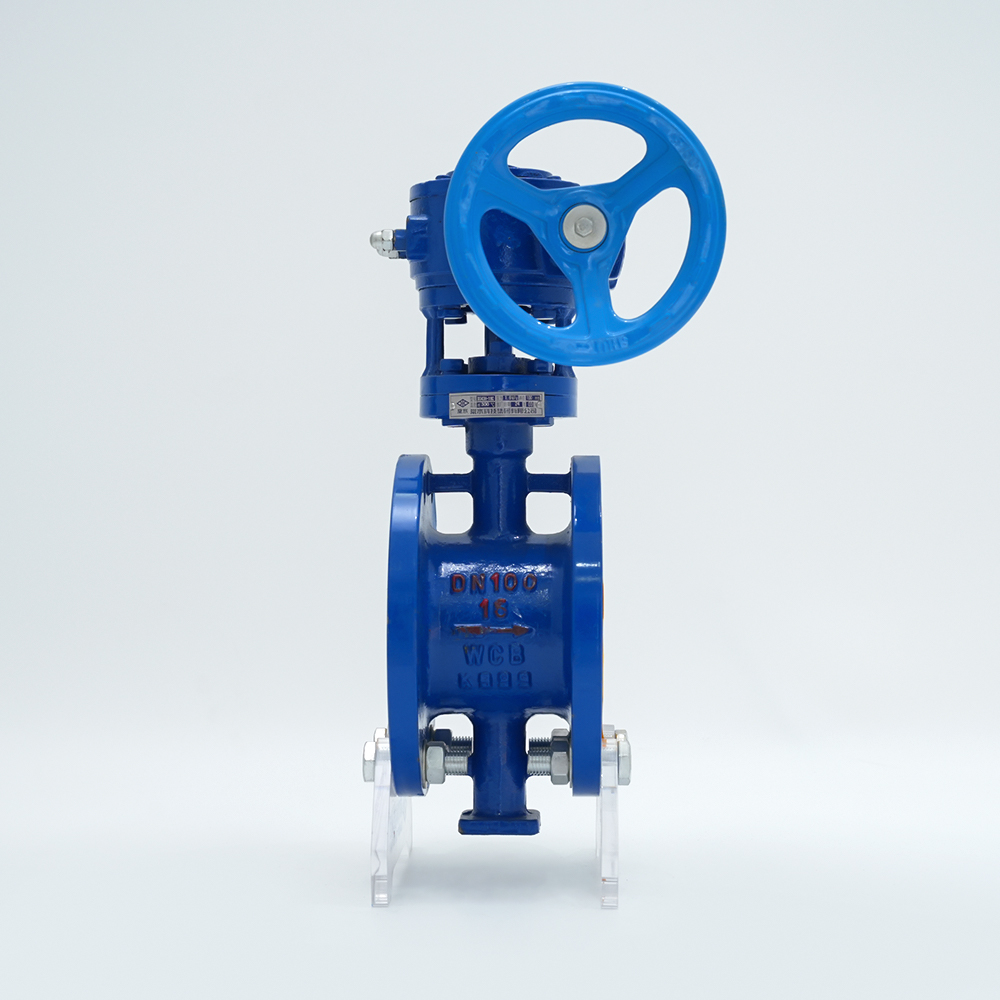

The superior resilience of cast steel valves under "iron ball strike" simulations of water hammer effects, compared to cast iron valves, stems from a multifaceted interplay of material science, microstructural design, and mechanical behavior. Here’s a deeper dive into the mechanisms at play:

1. Material Composition & Heat Treatment
Cast steel’s alloy chemistry—typically including carbon (0.2–0.5%), manganese, chromium, and molybdenum—is engineered to enhance toughness. These elements:

Carbon: Increases hardness but is strictly controlled to avoid brittleness.
Manganese: Promotes grain refinement and sulfide inclusion shaping, improving ductility.
Chromium/Molybdenum: Stabilize the matrix at elevated temperatures and resist intergranular corrosion, critical for water hammer scenarios where localized heating may occur.
Heat treatments like normalizing or quenching-and-tempering further optimize the microstructure, balancing strength and toughness. Cast iron, lacking these alloys and heat treatments, remains inherently brittle.

2. Microstructural Superiority
Grain Size: Cast steel’s finer, equiaxed grains (due to controlled solidification) distribute stress more evenly during impact, preventing crack nucleation.
Defect Mitigation: Advanced casting techniques (e.g., lost-foam casting) reduce porosity and inclusions, which act as stress concentrators in cast iron.
Phase Distribution: Cast steel’s pearlitic-ferritic matrix (with bainite in tempered variants) offers a ductile-brittle synergy, while cast iron’s flaky graphite disrupts matrix continuity, amplifying brittleness.

3. Fracture Mechanics Under Impact
Cast Steel: Under iron ball impact, the material undergoes ductile fracture via microvoid coalescence. Plastic deformation around impacted zones absorbs energy through dislocation pileups and strain hardening, akin to a car bumper crumpling to absorb crash energy.
Cast Iron: Fails via brittle transgranular cleavage. Graphite flakes create weak interfaces, causing rapid crack propagation at speeds exceeding 5,000 m/s—similar to cracking a porcelain plate with a hammer.

4. Energy Dissipation Dynamics
Cast Steel: The impact energy is dissipated over a larger volume via plastic work (e.g., bending, stretching of lattice structures). This "energy spreading" reduces peak stress concentrations.
Cast Iron: Energy is localized at the impact point, with minimal plastic deformation. Once the fracture toughness threshold is breached, the component fails catastrophically, releasing stored strain energy explosively.

5. Real-World Relevance
In oil pipelines or steam systems, water hammer generates pressure spikes exceeding 100 bar. A cast steel valve can deform elastically under such loads, recovering its shape post-impact, whereas a cast iron valve would shatter, leading to pipeline rupture. This explains why cast steel valves are mandated in ASME B31.3 for critical services.

6. Experimental Validation
Iron ball drop tests (e.g., ASTM E208) quantify impact resistance using parameters like energy-to-rupture (J/cm²). Cast steel typically withstands 2–3x higher energy than cast iron. High-speed photography reveals ductile necking in steel vs. instantaneous fragmentation in iron.

7. Future Innovations
Emerging technologies like nanotwinned steel or composite-reinforced castings could further enhance toughness. Additionally, computational models using finite element analysis (FEA) now predict impact behavior with >90% accuracy, aiding valve design.
