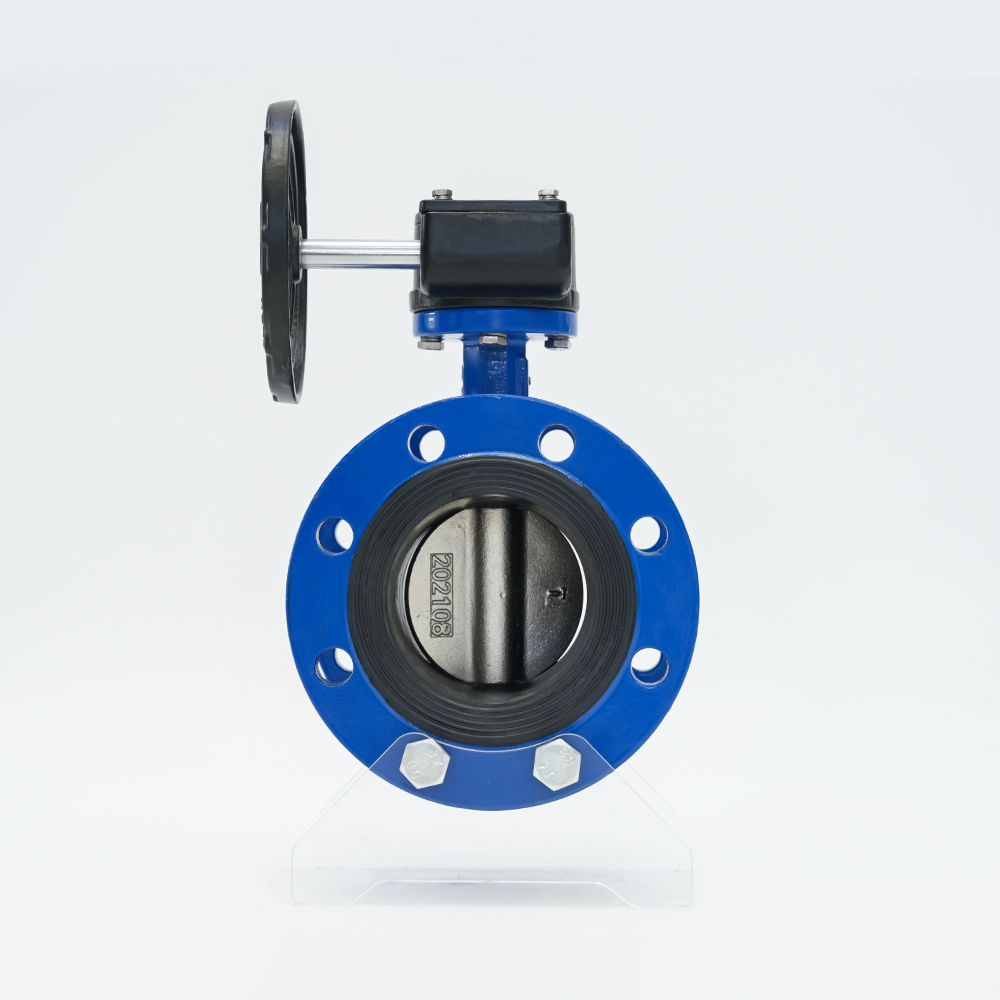

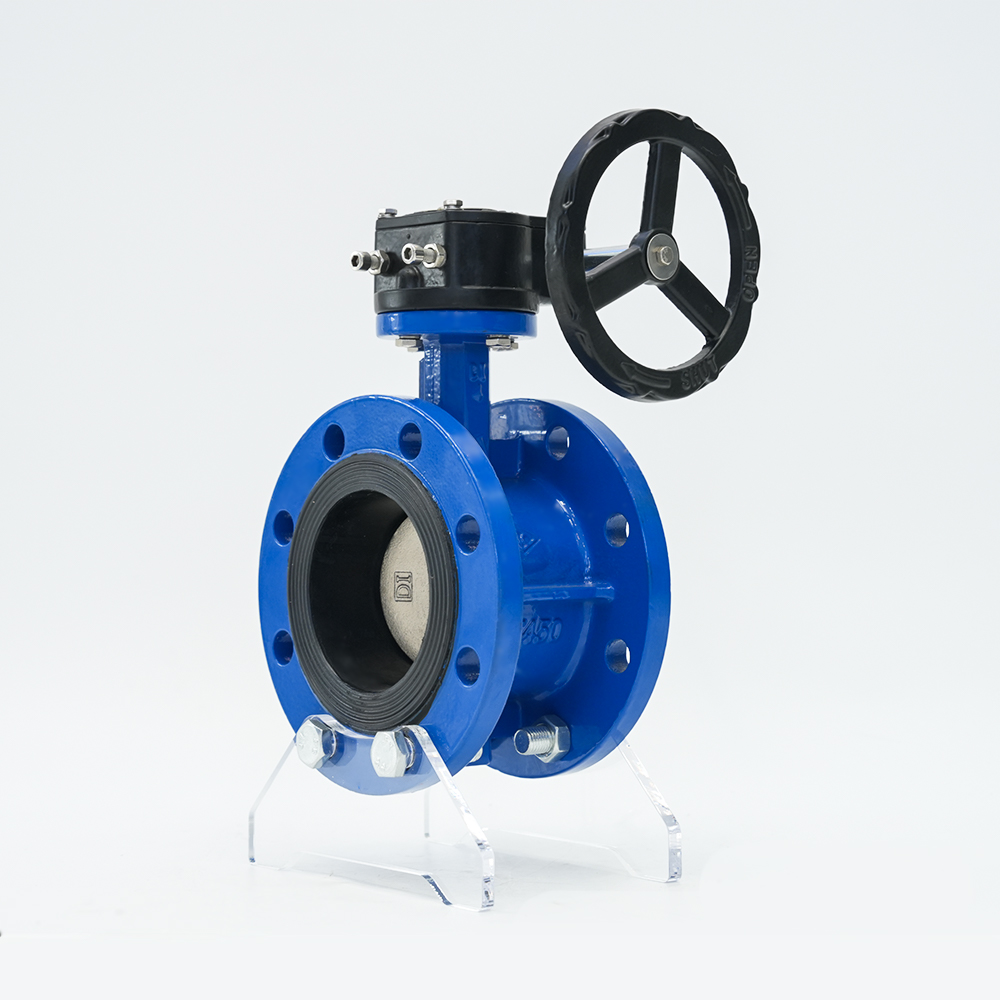

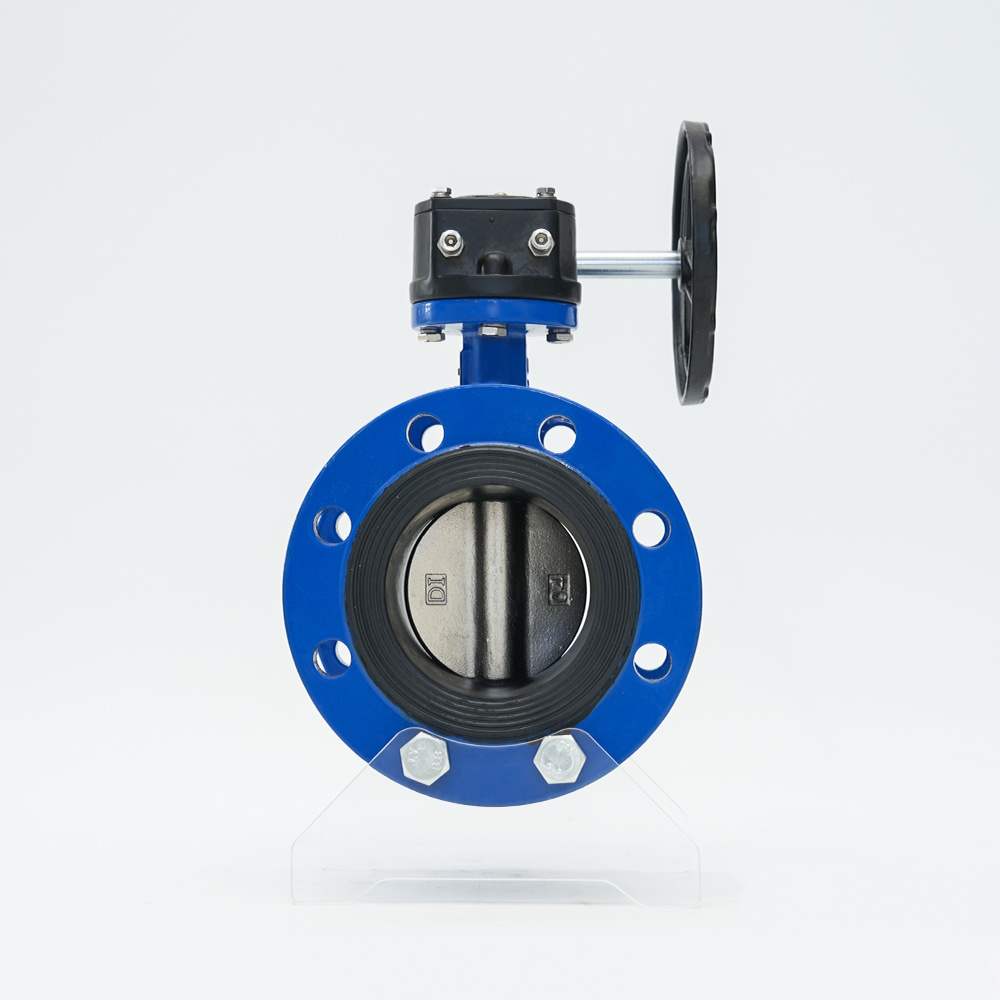

Turbine Flange Butterfly Valve D341X-16Q

Flange butterfly valve is a high-quality soft seal valve. It is mainly composed of the valve body, butterfly plate stem, operating mechanism, and other parts. It has the characteristics of a simple structure, good double-sided pressure bearing and corrosion resistance, light operating torque, and high reliability. Since the butterfly valve of this product adopts the centerline principle design, the spatial movement trajectory of the sealing surface is idealized. The sealing surfaces have no friction or interference with each other. In addition, the sealing material is properly selected, thereby improving the sealing performance and wear resistance of the butterfly valve. A reliable guarantee was obtained.

  • Turbine Flange Butterfly Valve D341X-16Q
  • Turbine Flange Butterfly Valve D341X-16Q
  • Turbine Flange Butterfly Valve D341X-16Q
  • Turbine Flange Butterfly Valve D341X-16Q
  • Turbine Flange Butterfly Valve D341X-16Q
Contact us

Description

Body material

Nodular cast iron

Model

D381X-16Q

Specification

DN50-2000

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2012


Product Overview

Since the butterfly valve of this product adopts the centerline principle design, the spatial motion trajectory of the sealing surface is idealized, and the sealing surfaces have no friction and interference with each other. In addition, the sealing material is properly selected, thereby improving the sealing performance and wear resistance of the butterfly valve. A reliable guarantee was obtained.

Features

1. Manufacturing standard GB/T12238

2. Length standard GB/T12221

3. Pressure test standard GB/T13927-89

4. Flange standard GB/T1724.6-2008


Main Materials

Name Material
Valve body QT450
Disc QT450
Stem 2Cr13
Worm gear head QT450
Seal nitrile rubber
Bolt Level 4.8

Performance Specifications

Nominal diameter DN50-DN2000
Nominal pressure 1.0Mpa 1.6Mpa
Strength test water 1.5Mpa 2.4Mpa
Seal test water 1.1Mpa 1.76Mpa
Barometric test gas 0.6Mpa
Applicable temperature 0-80°C
Applicable media water, oil, etc
