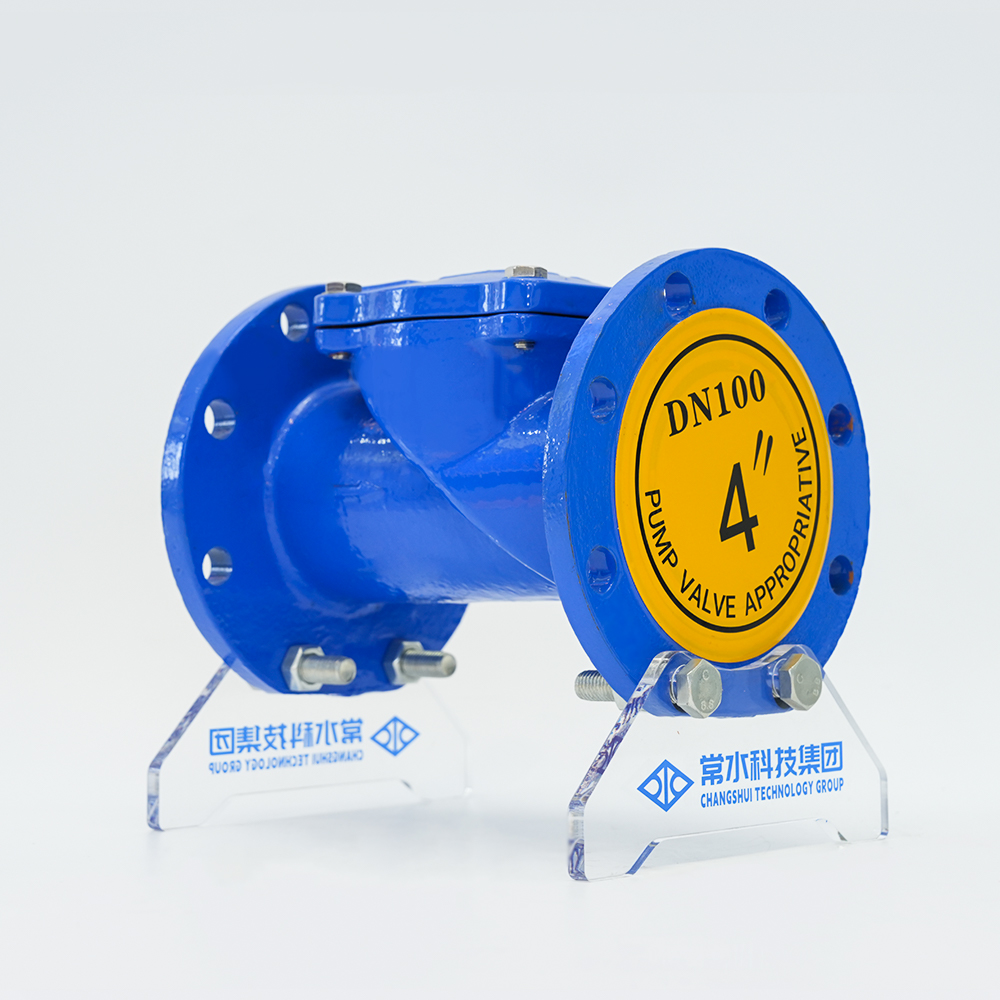

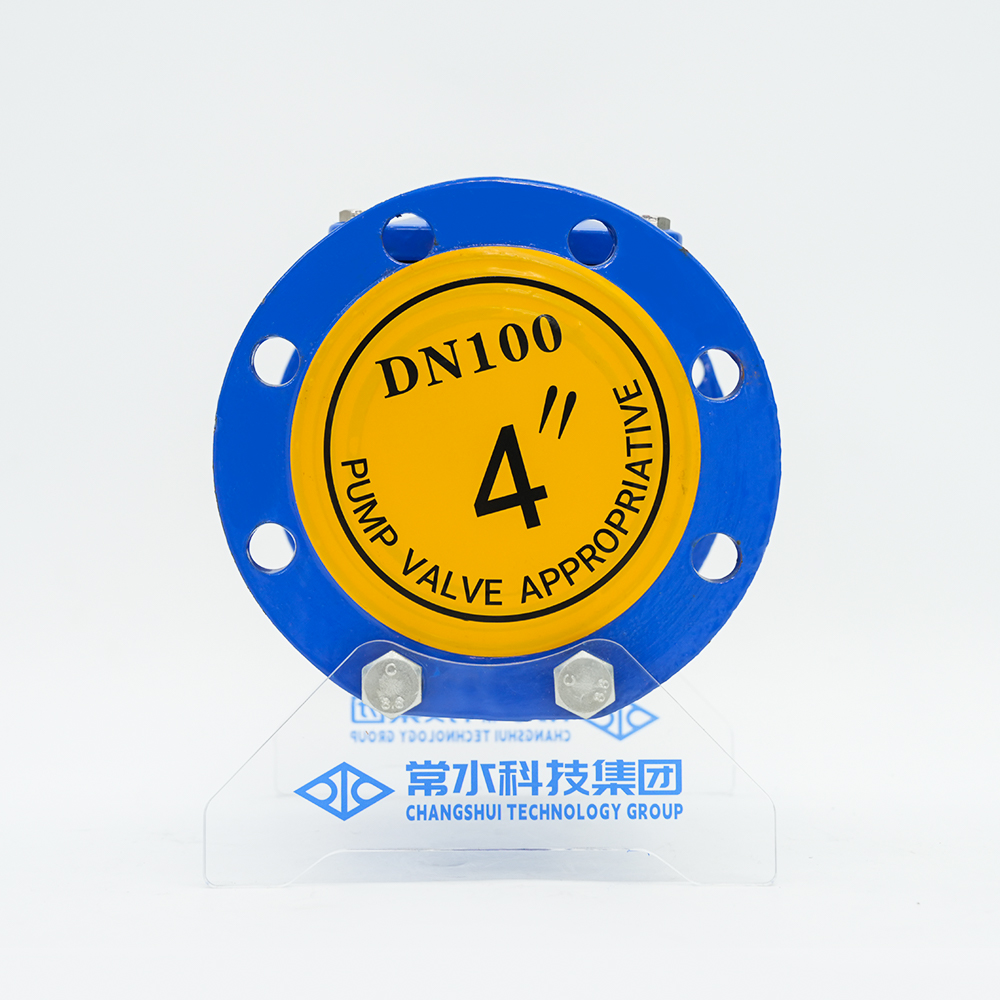

Rubber Disc Check Valve H44X-16Q

The rubber flap check valve is mainly composed of the valve body, the valve cover, and the main parts of the rubber flap. The rubber is made of ductile iron flap and lined with EPDM or nitrile rubber. It has a long service life and is not easy to accumulate debris. Easy to maintain. This valve is suitable for water supply and drainage systems. It can be installed at the outlet of the water pump to prevent backflow and water hammer from damaging the pump valve. It can also be installed in the bypass pipe of the inlet and outlet water pipes to prevent pool water from flowing back into the water system.

  • Rubber Disc Check Valve H44X-16Q
  • Rubber Disc Check Valve H44X-16Q
  • Rubber Disc Check Valve H44X-16Q
  • Rubber Disc Check Valve H44X-16Q
  • Rubber Disc Check Valve H44X-16Q
  • Rubber Disc Check Valve H44X-16Q
Contact us

PREV：Slideway Rolling Ball Type Check Valve HQ41X-16QNEXT：Silencer Check Valve HC41X-16Q
Description

Body material

Nodular cast iron

Model

H44X-16Q

Specification

DN40-600

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2010

Product Overview

This valve is mainly used at the outlet of pipeline pumps in water supply and drainage systems, fire protection, air conditioning, electricity, construction, food, water treatment, municipal administration, shipbuilding, and other pipelines to prevent the backflow of media. Since the sealing ring of this product adopts an inclined design, the closing time is short, which can reduce water hammer pressure. The valve disc is made of nitrile oil-resistant rubber and a steel plate that is pressed at high temperatures. It has good erosion resistance and sealing performance. The product structure is simple, and maintenance, repair, and transportation are easy.

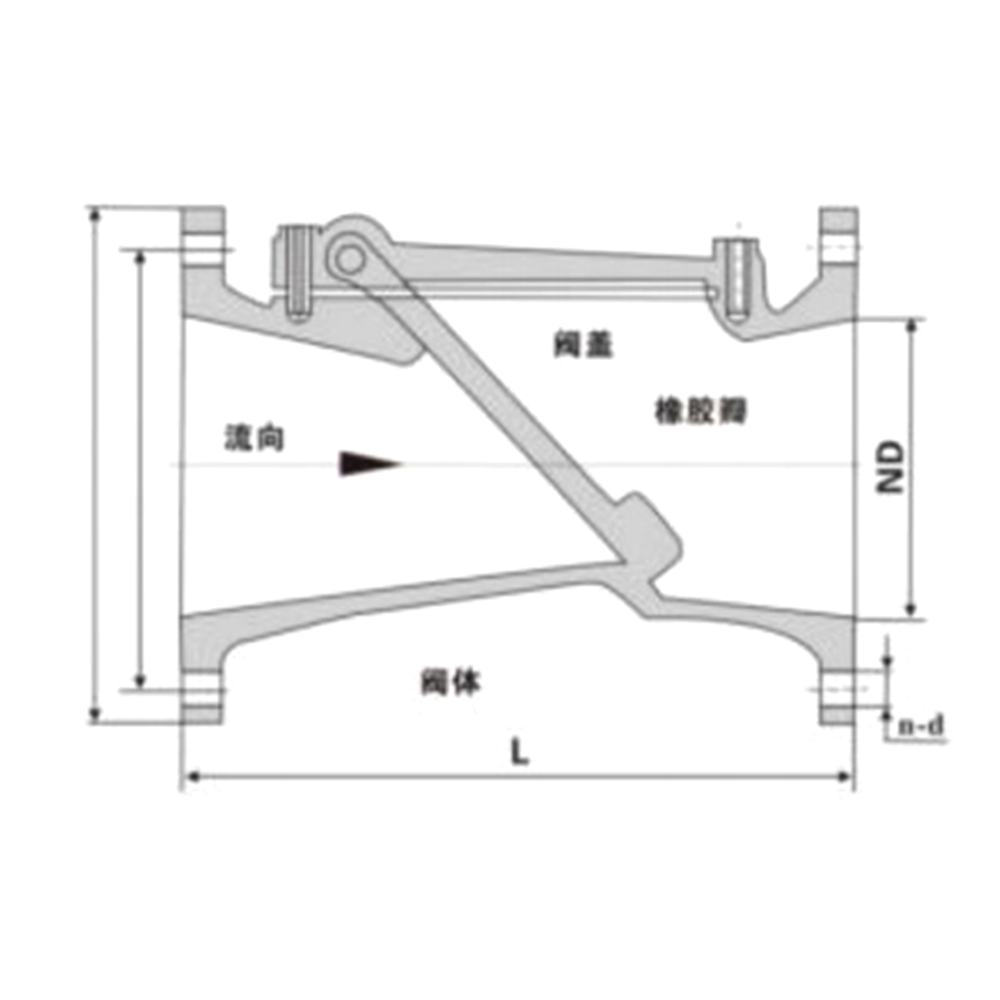

Main Parts Materials

Serial Number Main Part Material
1 Valve body QT450
2 Bonnet QT450
3 Valve bladder Rubber assemblies
4 Gaskets nitrile rubber
5 Fasteners Standard

Product Technical Parameters

Specification (DN) 50 65 80 100 125 150 200 250 300
Valve Length(mm) 205 217 238 292 332 360 492 620 700
Test Pressure
(MPa)		 Housing 1.5-2.4
Seal 1.1-1.76
Nominal Pressure(MPa) 1.0-1.6
Applicable temperature 0-80℃
Applicable media water and weakly corrosive fluids
