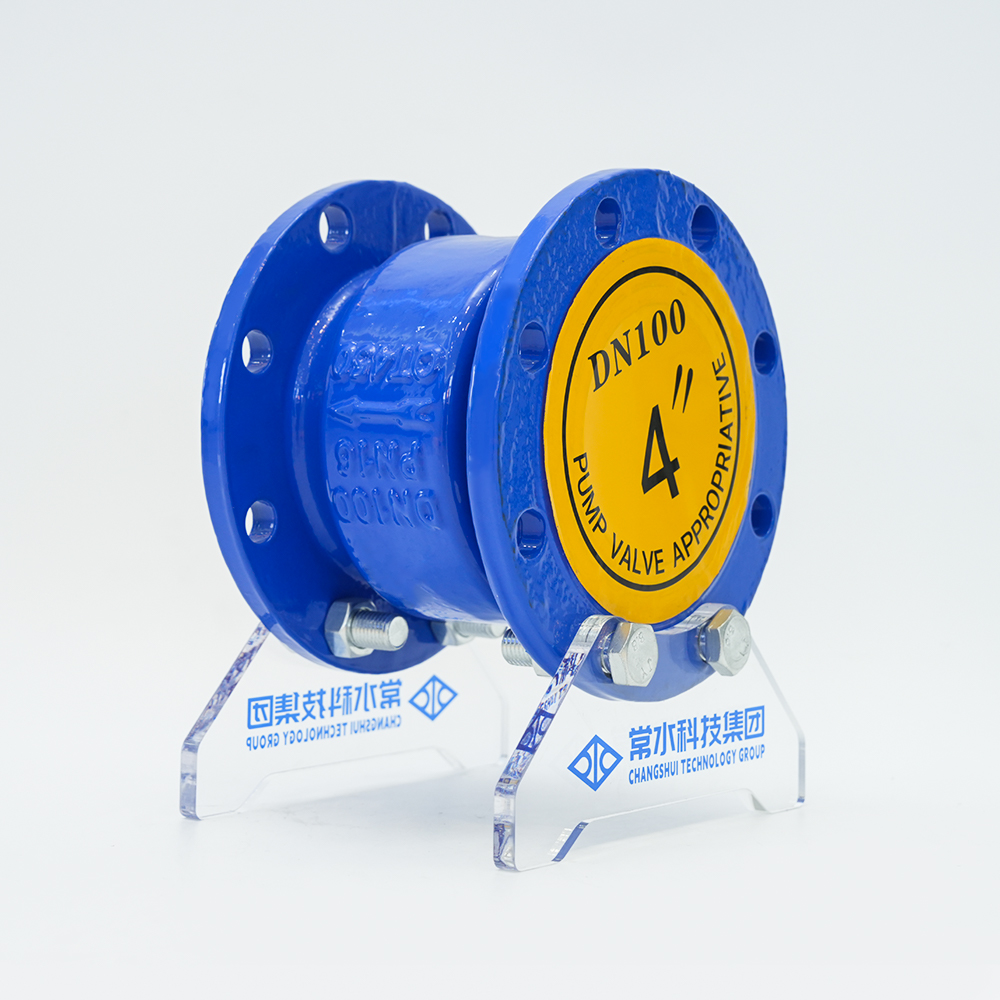

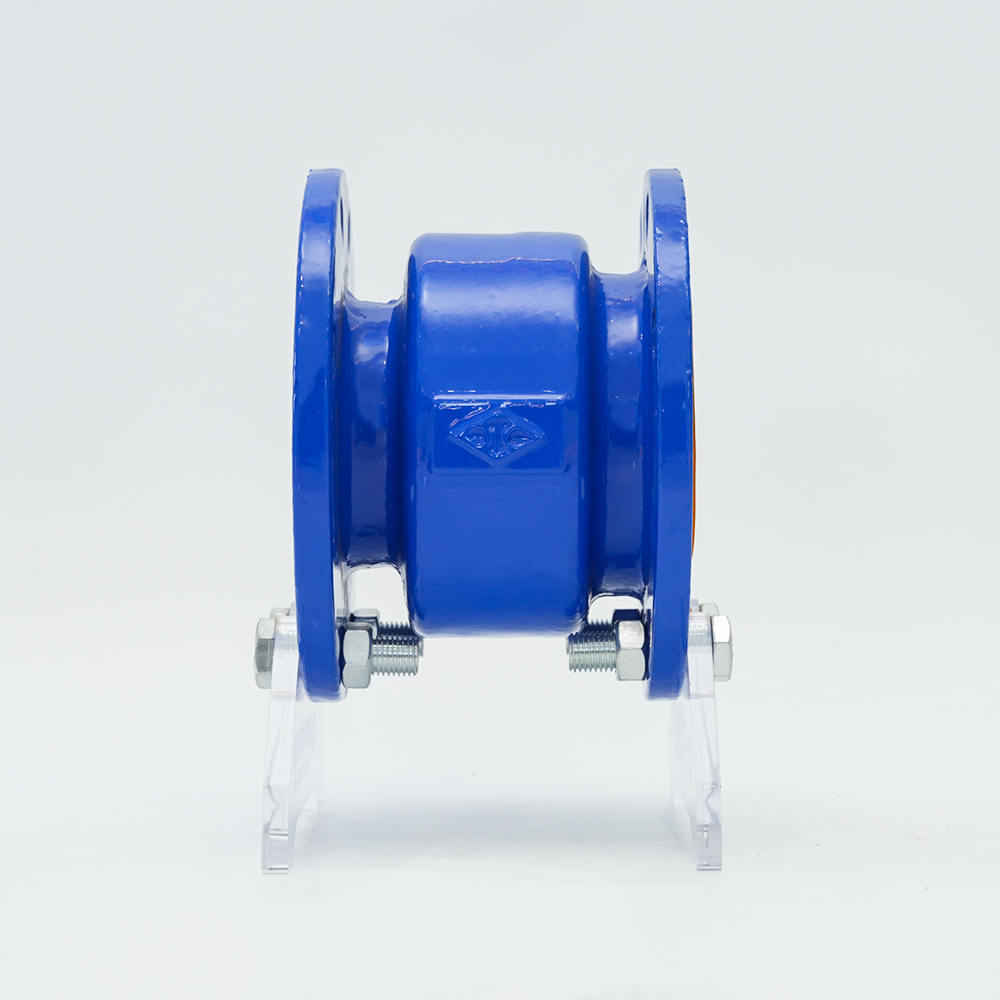

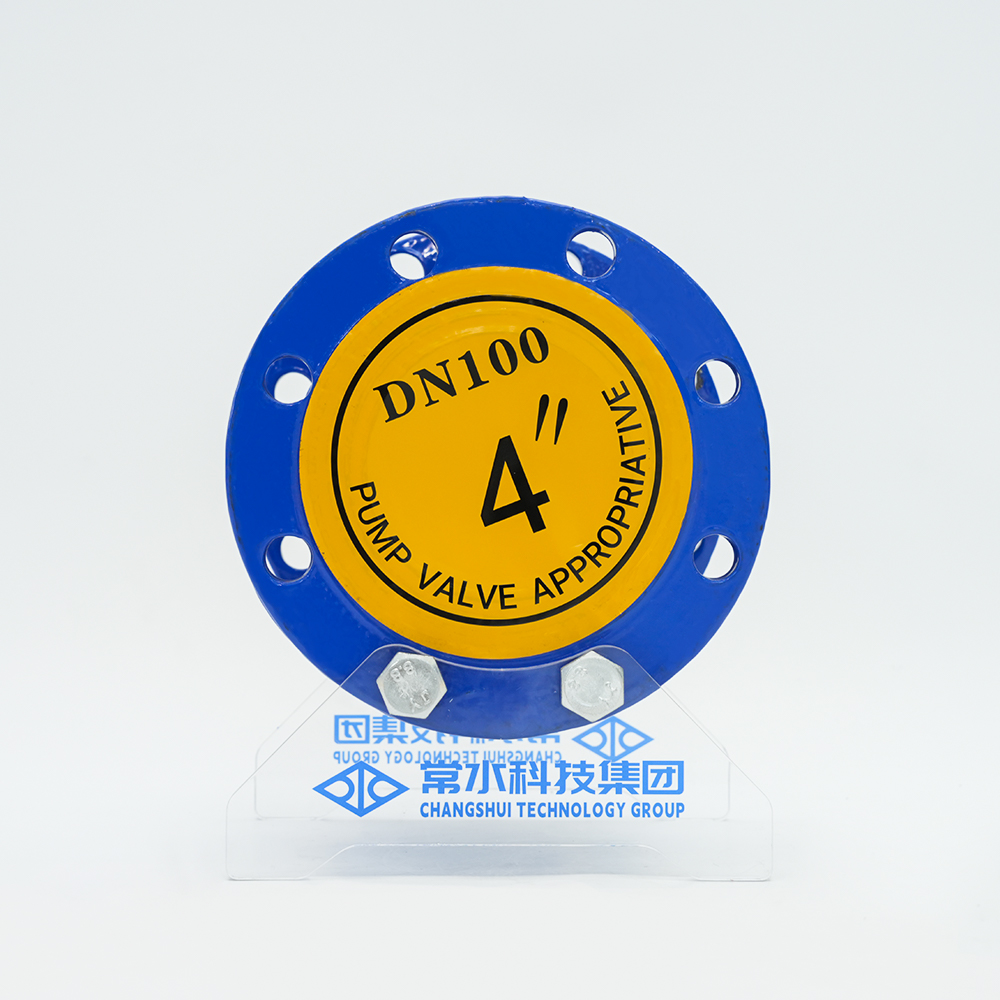

Silencer Check Valve HC41X-16Q

Silencer check valves are mainly suitable for water supply and drainage systems of high-rise buildings, fire pipe water supply systems, etc. This silencer check valve can effectively prevent the medium from backflowing and causing destructive water hammer, and protect the water pump and other pipeline equipment. The main performance characteristics of its valve are as follows: 1. This valve can be installed vertically or horizontally. The valve can be lifted and lowered flexibly, and it operates smoothly, has low noise, is safe, and rarely has faults. 2. Reasonable structure and good sealing performance. 3. Wear-resistant and long service life.

  • Silencer Check Valve HC41X-16Q
  • Silencer Check Valve HC41X-16Q
  • Silencer Check Valve HC41X-16Q
  • Silencer Check Valve HC41X-16Q
  • Silencer Check Valve HC41X-16Q
  • Silencer Check Valve HC41X-16Q
Contact us

PREV：Rubber Disc Check Valve H44X-16QNEXT：New Rubber Disc Check Valve H44X-16Q
Description

Body material

Nodular cast iron

Model

HC41X-16Q

Specification

DN40-600

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2011

Product Overview

A silent check valve refers to a valve that relies on the flow of the medium itself to automatically open and close the valve disc to prevent the backflow of the medium. It is also called a check valve, one-way valve, silencer check valve, counterflow valve, and back pressure valve. . Its main function is to prevent the backflow of the medium, prevent the reverse rotation of the pump and drive motor, and release the container medium. It can also be used on pipelines supplying auxiliary systems where the pressure may rise above the system pressure. Mainly used for pure pipelines and industrial, environmental protection, water treatment, high-rise building water supply, and drainage pipelines to prevent the reverse flow of media.

Product Features

The valve disc is guided by the central axis at both ends of the inlet and outlet, opening and closing flexibly, and can be installed horizontally or vertically. The valve disc is spring-loaded, and its rapid closing can effectively reduce water hammer pressure, with good sealing performance and no noise when closing. Wear-resistant and long service life.


Main Parts Materials

Serial number Main Part Material
1 Valve body QT450
2 Valve ring QT450
3 Disc Rubber assemblies
4 Spring stainless steel
5 Stem 2CR13

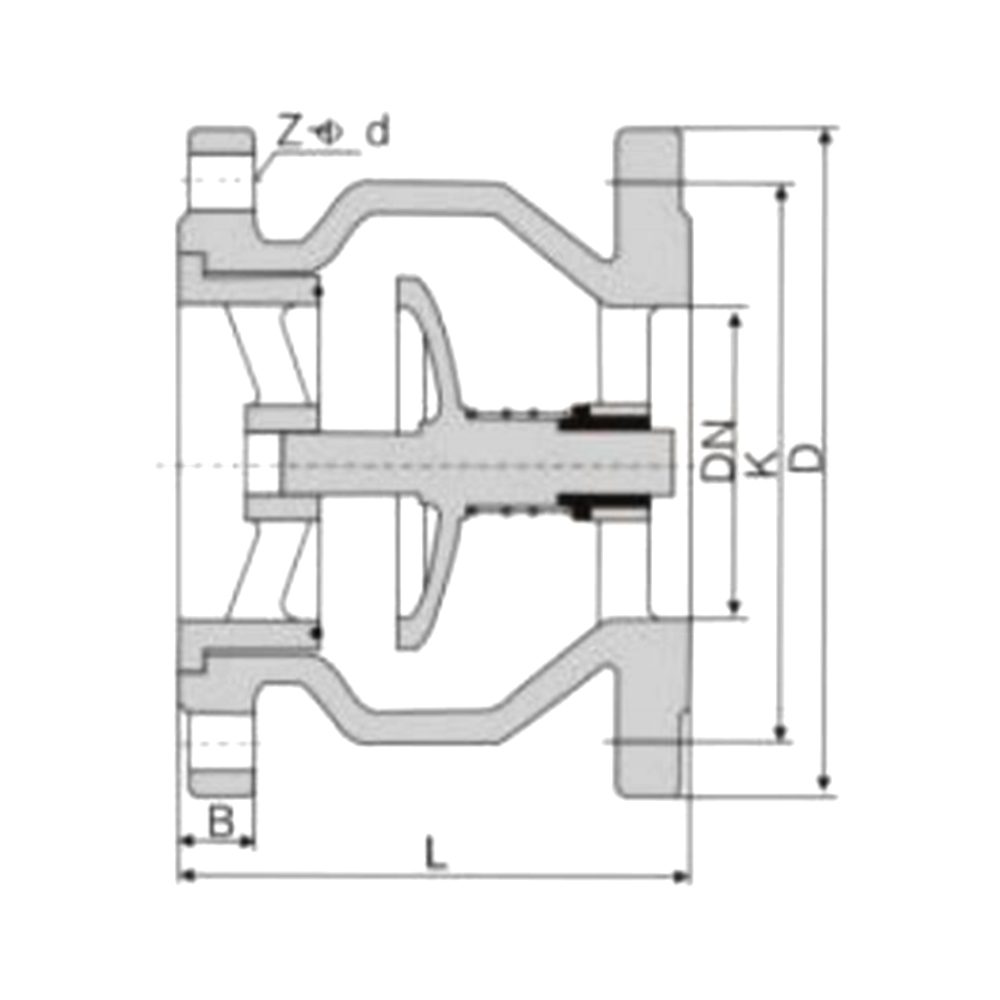

Product Technical Parameters

Specification (DN) 50 65 80 100 125 150 200 250 300 350 400
Valve Length(mm) 120 132 150 162 188 207 253 278 310 350 390
Test Pressure
(MPa)		 Housing 1.5-2.4
Seal 1.1-1.76
Nominal Pressure(MPa) 1.0-1.6
Applicable temperature 0-80℃
Applicable media water and weakly corrosive fluids
