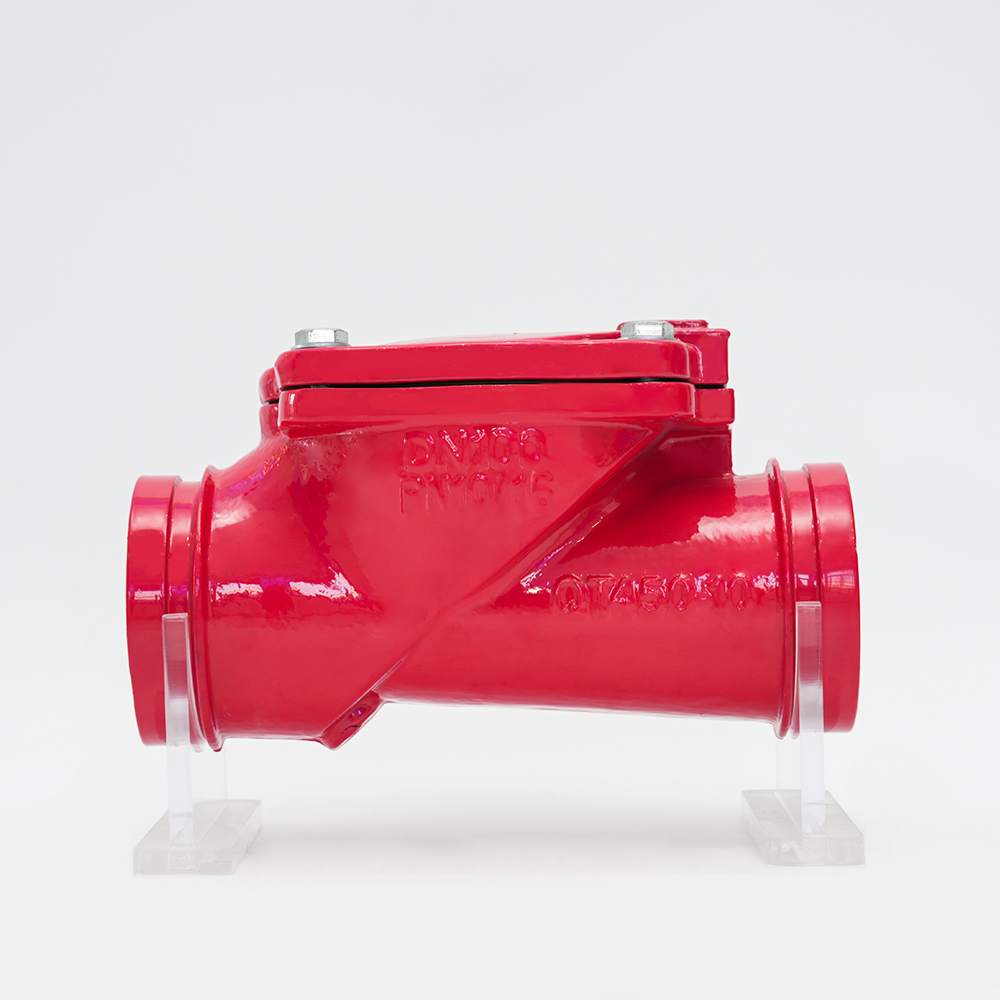

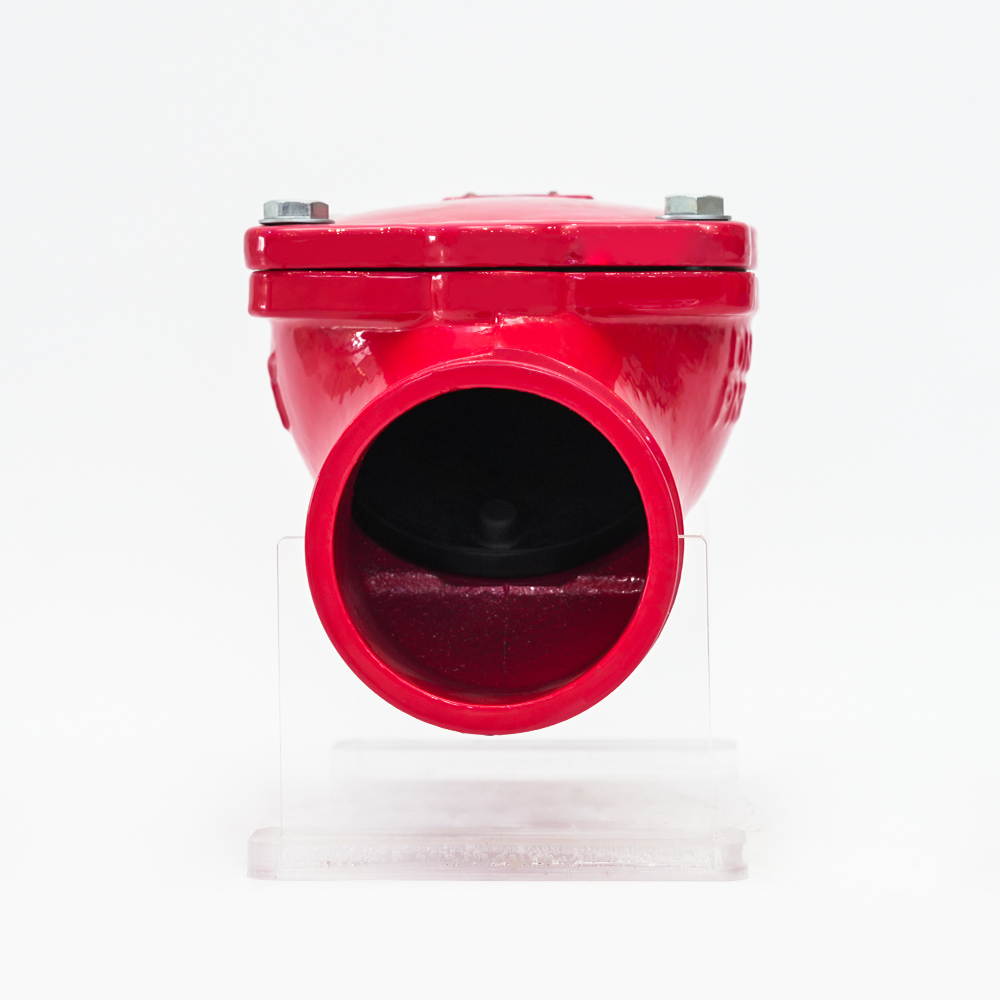

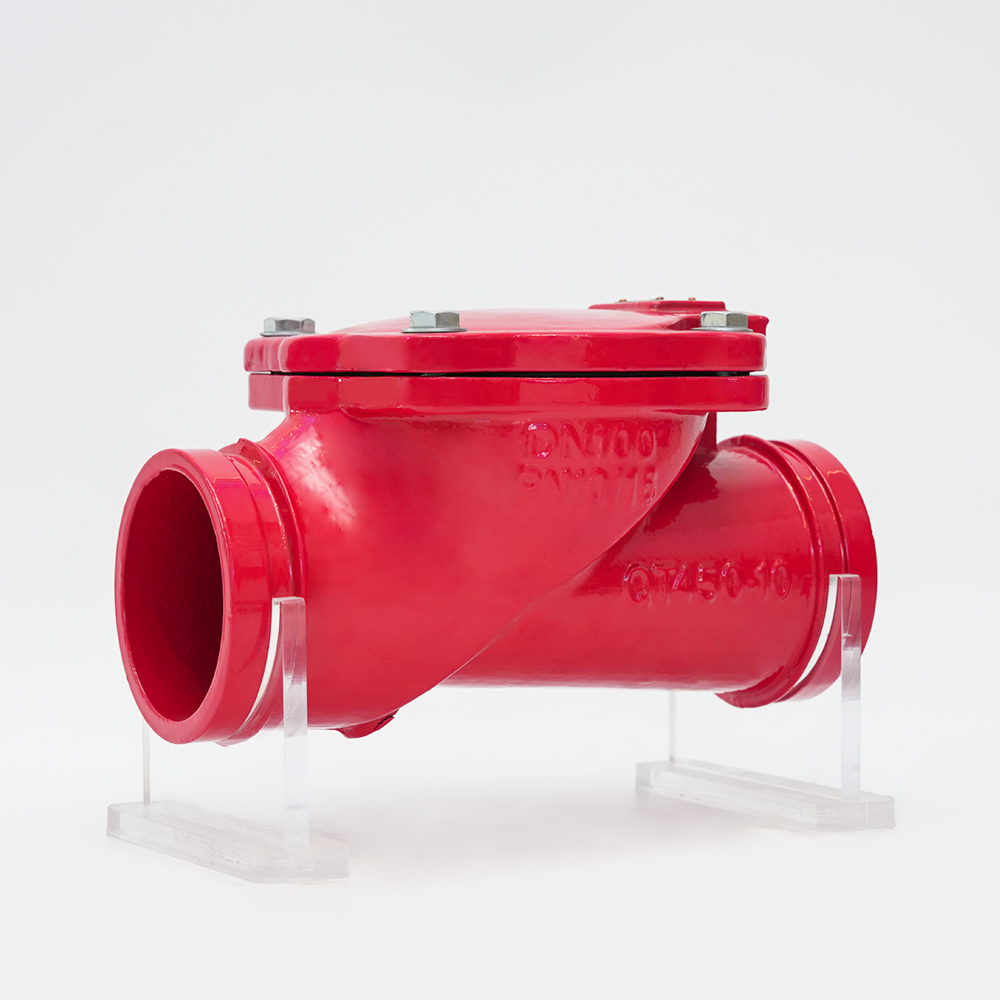

Grooved Rubber Disc Check Valve GH44X-16Q

The rubber flap check valve is mainly composed of the valve body, the valve cover, and the main parts of the rubber flap. The rubber is made of ductile iron flap and lined with EPDM or nitrile rubber. It has a long service life and is not easy to accumulate debris. Easy to maintain. This valve is suitable for water supply and drainage systems. It can be installed at the outlet of the water pump to prevent backflow and water hammer from damaging the pump valve. It can also be installed in the bypass pipe of the inlet and outlet water pipes to prevent pool water from flowing back into the water system.

  • Grooved Rubber Disc Check Valve GH44X-16Q
  • Grooved Rubber Disc Check Valve GH44X-16Q
  • Grooved Rubber Disc Check Valve GH44X-16Q
Contact us

PREV：No previous articleNEXT：Grooved Silencer Check Valve GHC41X-16Q
Description

Body material

Nodular cast iron

Model

GH44X-16Q

Specification

DN50-300

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2016

Product Overview

The rubber flap check valve is mainly suitable for horizontally installed water supply and drainage systems. It can be installed at the water pump outlet to prevent backflow and water hammer damage to the pump. It can also be installed on the bypass pipe of the water inlet and outlet pipe of the reservoir to prevent damage to the pump. Prevent pool water from flowing back into the water supply system

Product Features

The rubber flap in the valve is made of a steel plate, steel rod, and reinforced nylon cloth as the backing, and the outer layer is covered with rubber. The valve flap has a service life of up to 1 million times. The H84X (SFCV) series rubber flap check valve adopts a full flow area Designed with small water head loss and not easy to pile up


Product Technical Parameters

Pressure level:1.0 Mpa-1.6Mpa

Pressure test: GB/T13927-2008

Applicable medium: water, steam, gas, oil, etc

Structure length: GB/T12221-2005

Applicable temperature: 0°C-80°C

Design and manufacture: GB/T12233-2006

Nominal diameter: DN65-DN 200

Flange connection size: GB/T17241.6-2008
