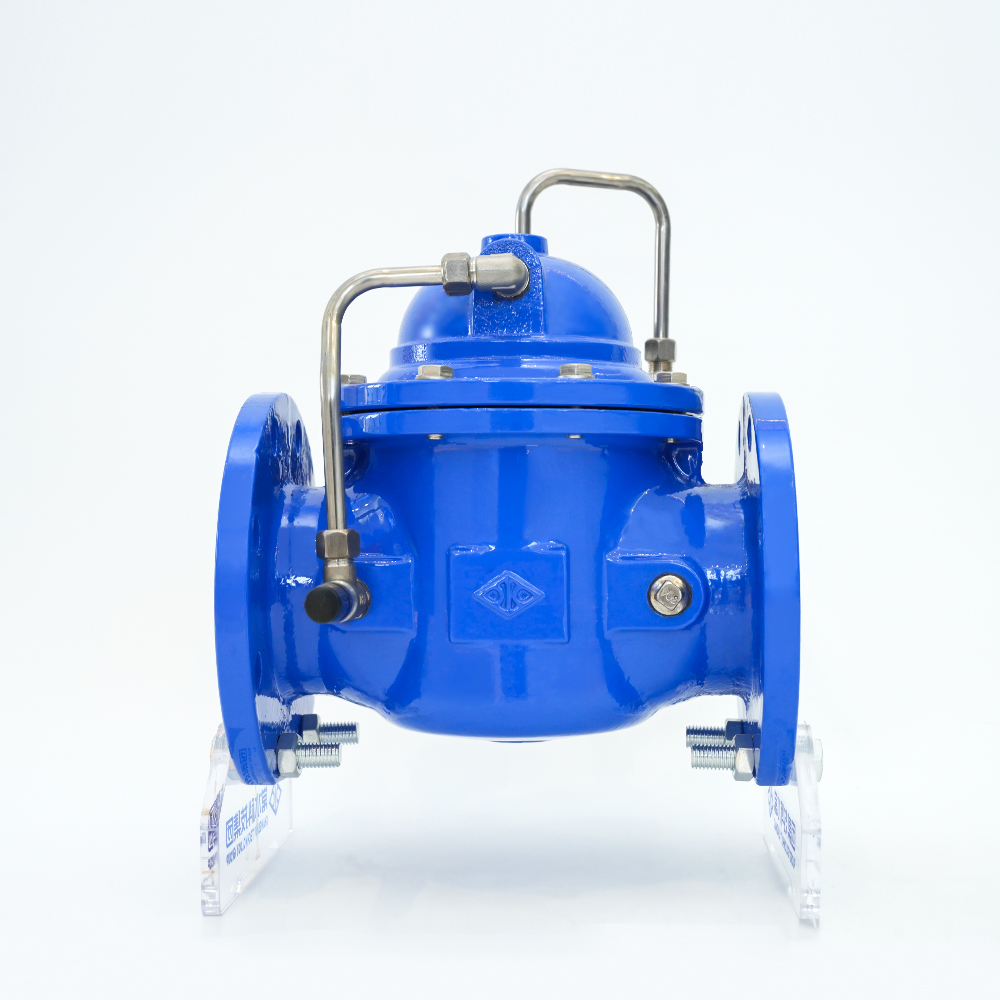

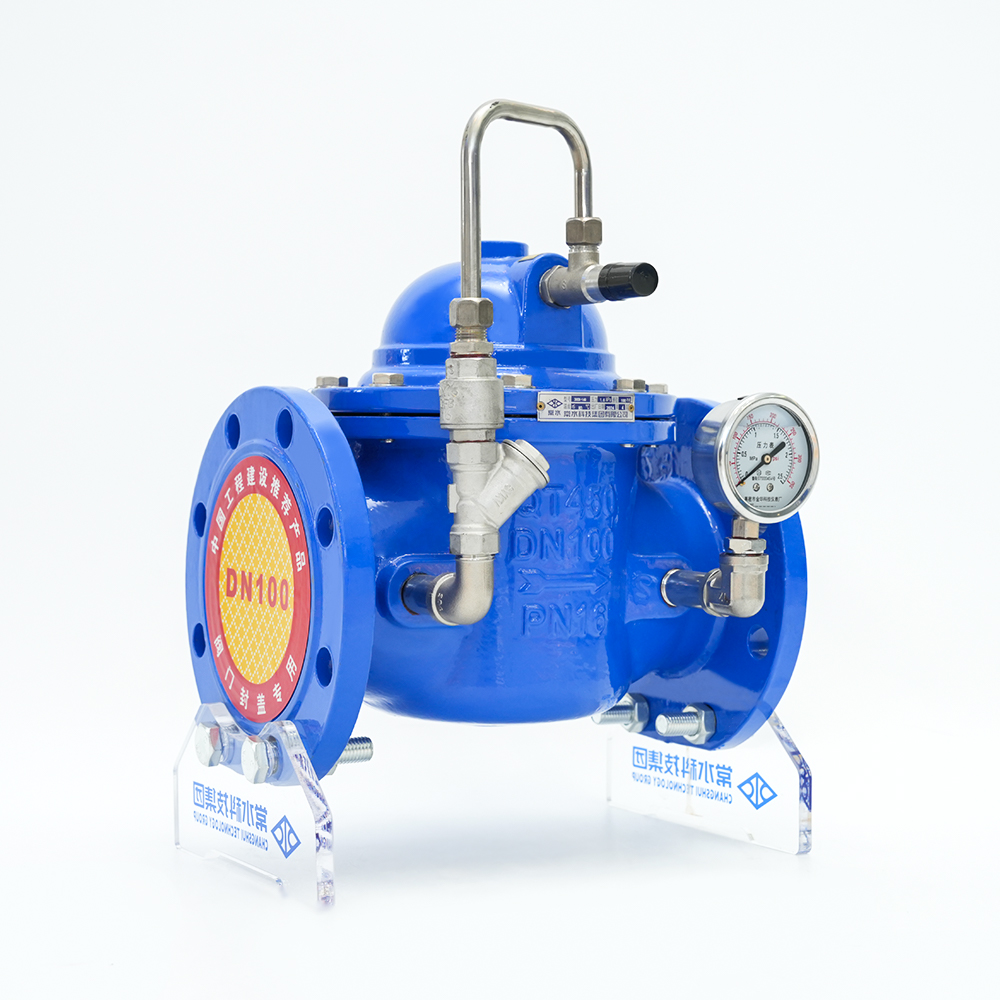

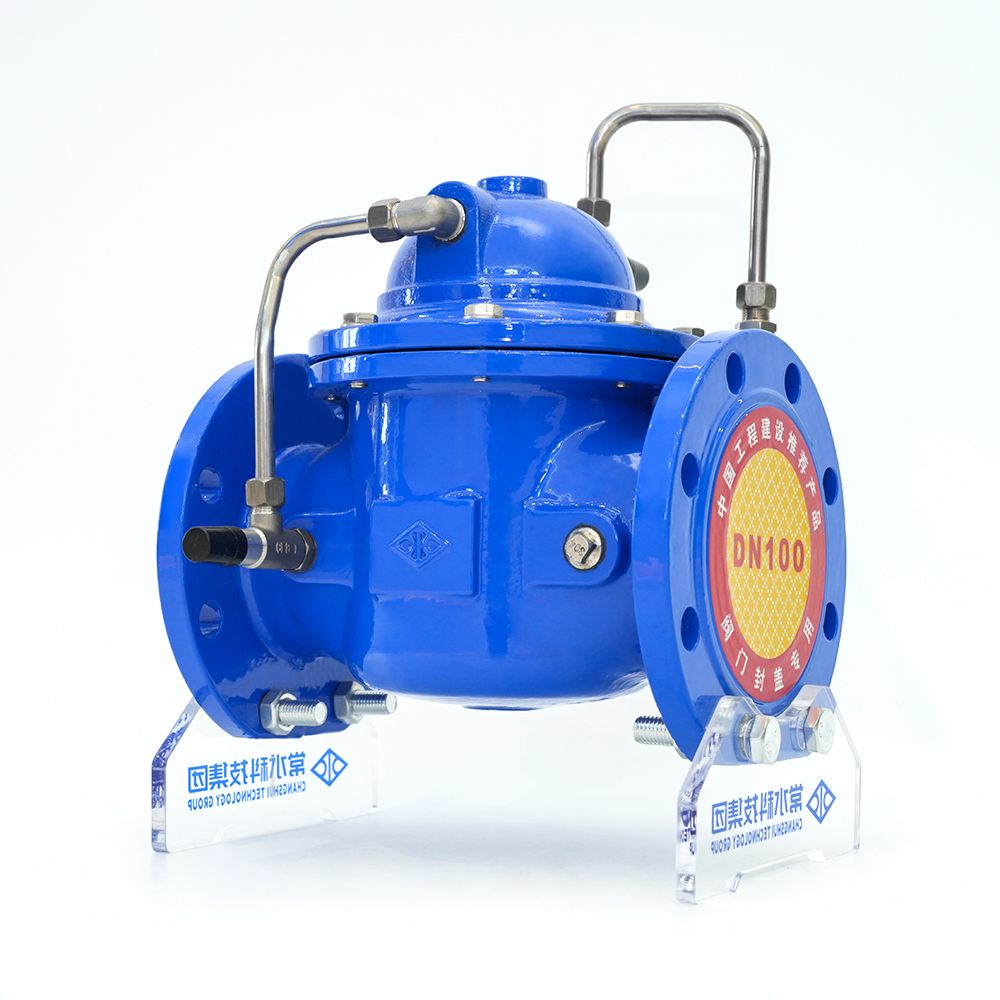

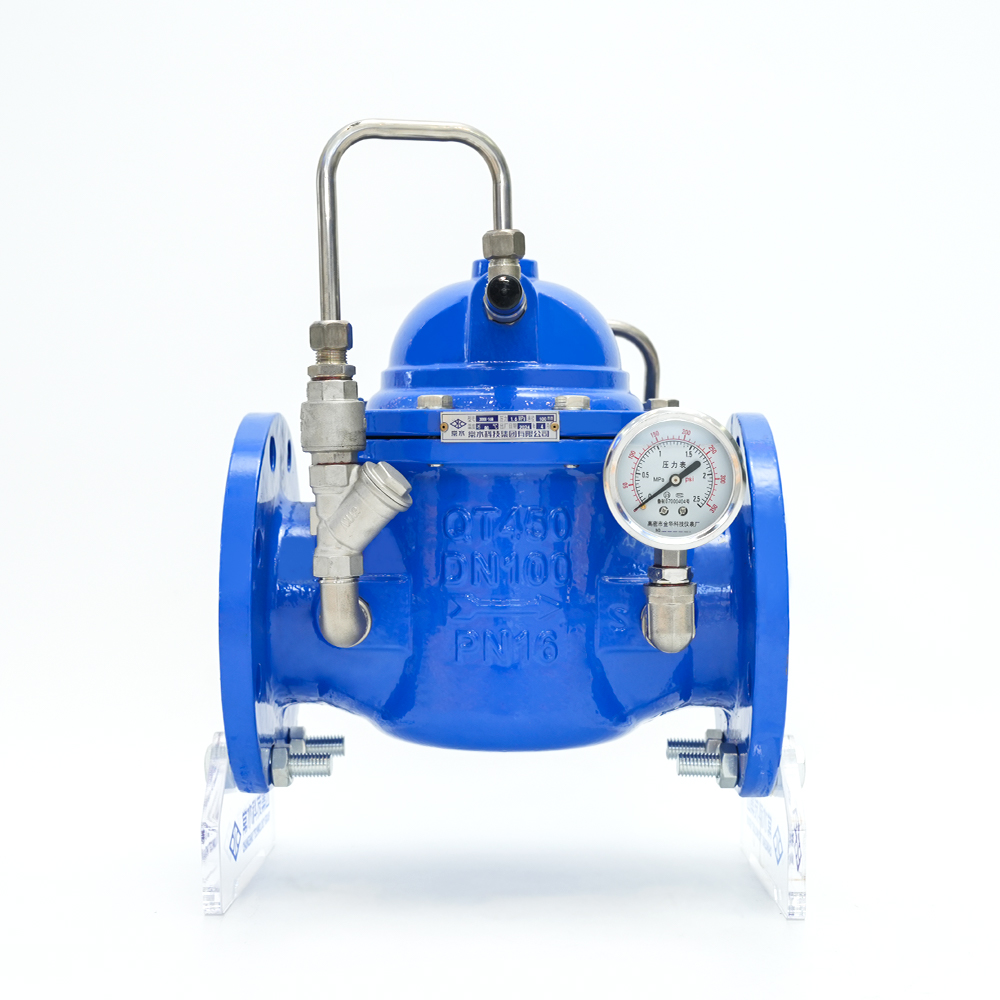

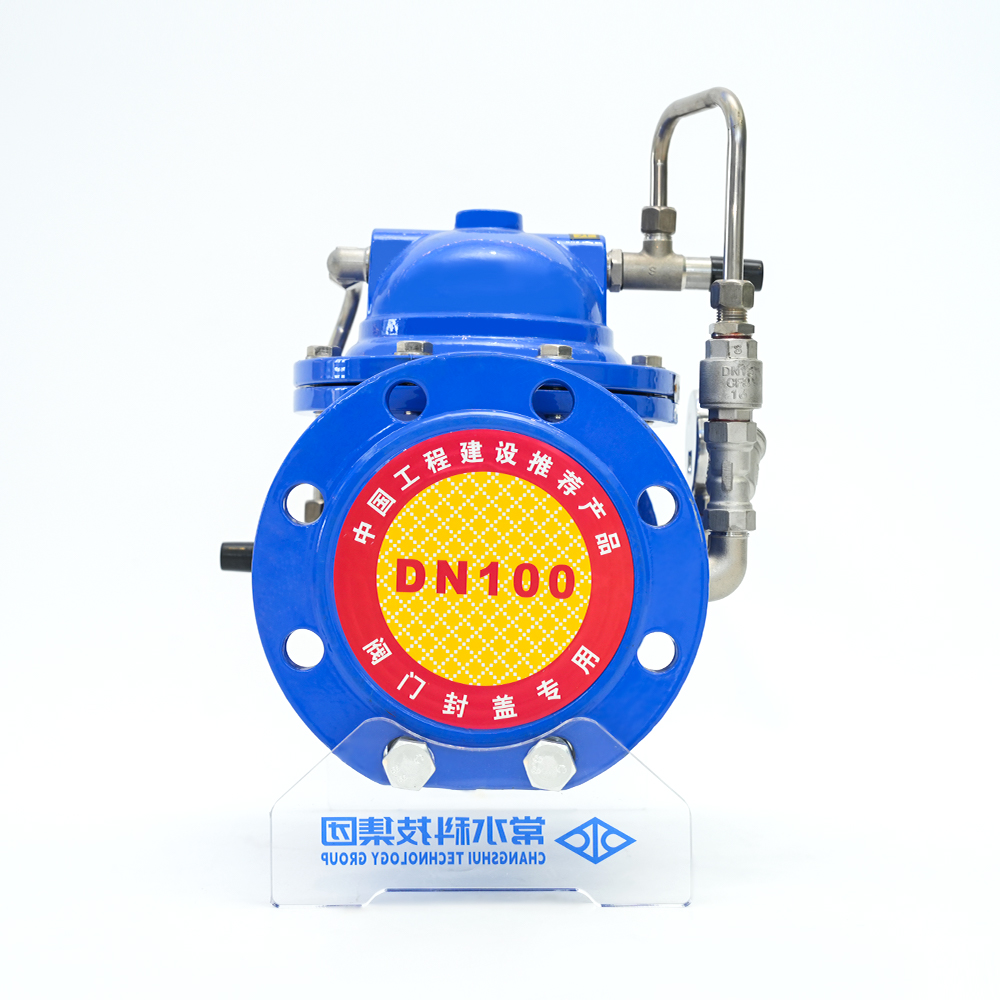

Slow Closing Check Valve 300X-16Q

The slow-opening and slow-closing multi-functional check valve produced by our company is designed and manufactured with reference to imported products and domestic advanced products. It is mainly used to be installed on the water pump outlet pipes of high-rise building water supply systems and other water supply systems to prevent In order to prevent medium backflow and prevent water hammer and water hammer phenomenon, one valve has three functions: electric valve, reverse valve, and water hammer eliminator, which can effectively improve the safety and reliability of the water system.

  • Slow Closing Check Valve 300X-16Q
  • Slow Closing Check Valve 300X-16Q
  • Slow Closing Check Valve 300X-16Q
  • Slow Closing Check Valve 300X-16Q
  • Slow Closing Check Valve 300X-16Q
  • Slow Closing Check Valve 300X-16Q
Contact us

PREV：Grooved Silencer Check Valve GHC41X-16QNEXT：Slideway Rolling Ball Type Check Valve HQ41X-16Q
Description

Body material

Nodular cast iron

Model

300X-16Q

Specification

DN50-600

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2016

Product Use

The slow-opening and slow-closing multi-functional check valve produced by our company is designed and manufactured for imported products and domestic advanced products. It is mainly used to be installed on the water pump outlet pipes of high-rise building water supply systems and other water supply systems to prevent The backflow of the medium prevents the occurrence of water hammer and water hammer. One valve has three functions: automatic valve, check valve, and water hammer eliminator, which can effectively improve the safety and reliability of the water system.

Features

1. Effective in eliminating water hammer. Integrate the technical principles of slow opening and slow closing to eliminate water hammer to prevent the occurrence of water hammer when opening the pump.

2. Easy to operate. Just operate the water pump motor opening and closing button, and the valve will automatically open and close according to the water pump operating procedures.

3. Good energy-saving effect. The valve adopts a wide valve body, full-pass reverse flow linear DC design, with small pressure loss, large flow rate, small size, and lightweight.

4. The opening pressure is adjustable. Since the valve is equipped with a pilot valve control system, you only need to set the opening pressure of the pilot valve to complete the setting of the opening pressure of the main valve, and the opening pressure can be flexibly adjusted according to the working conditions.

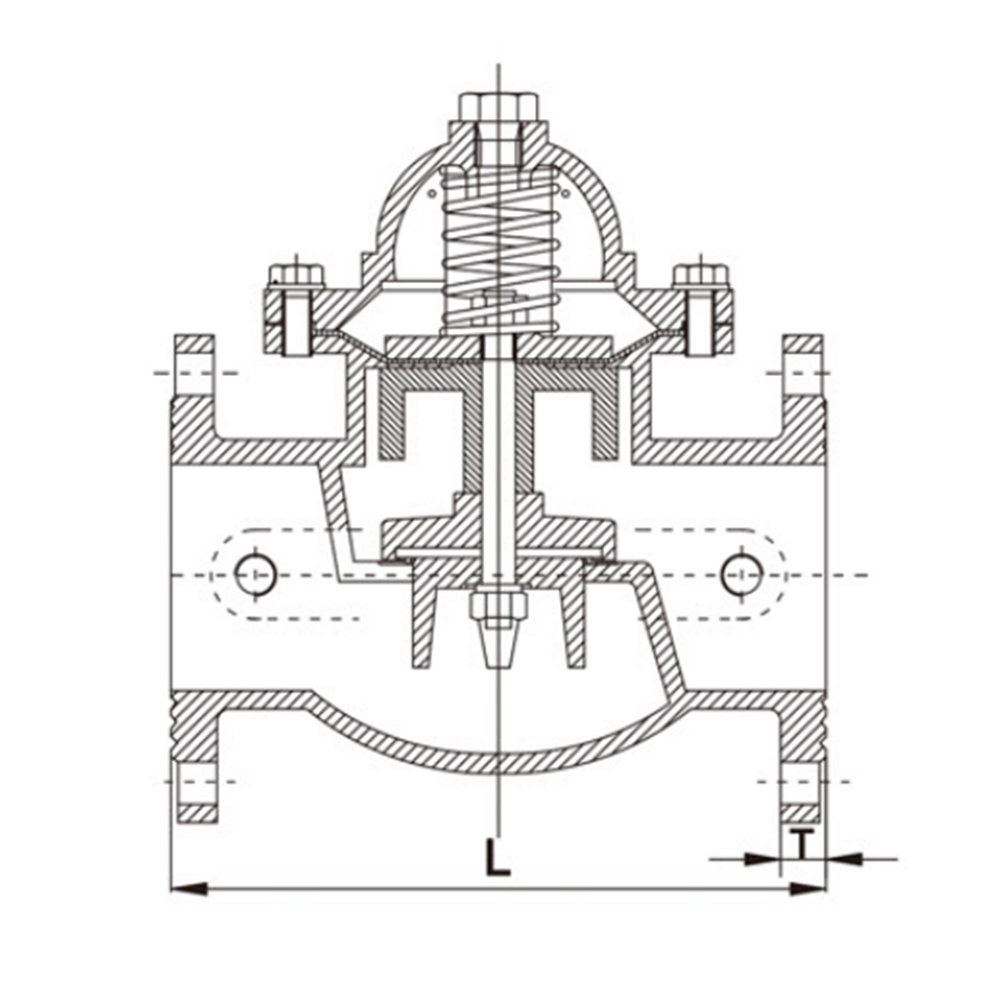

Installation Diagram
