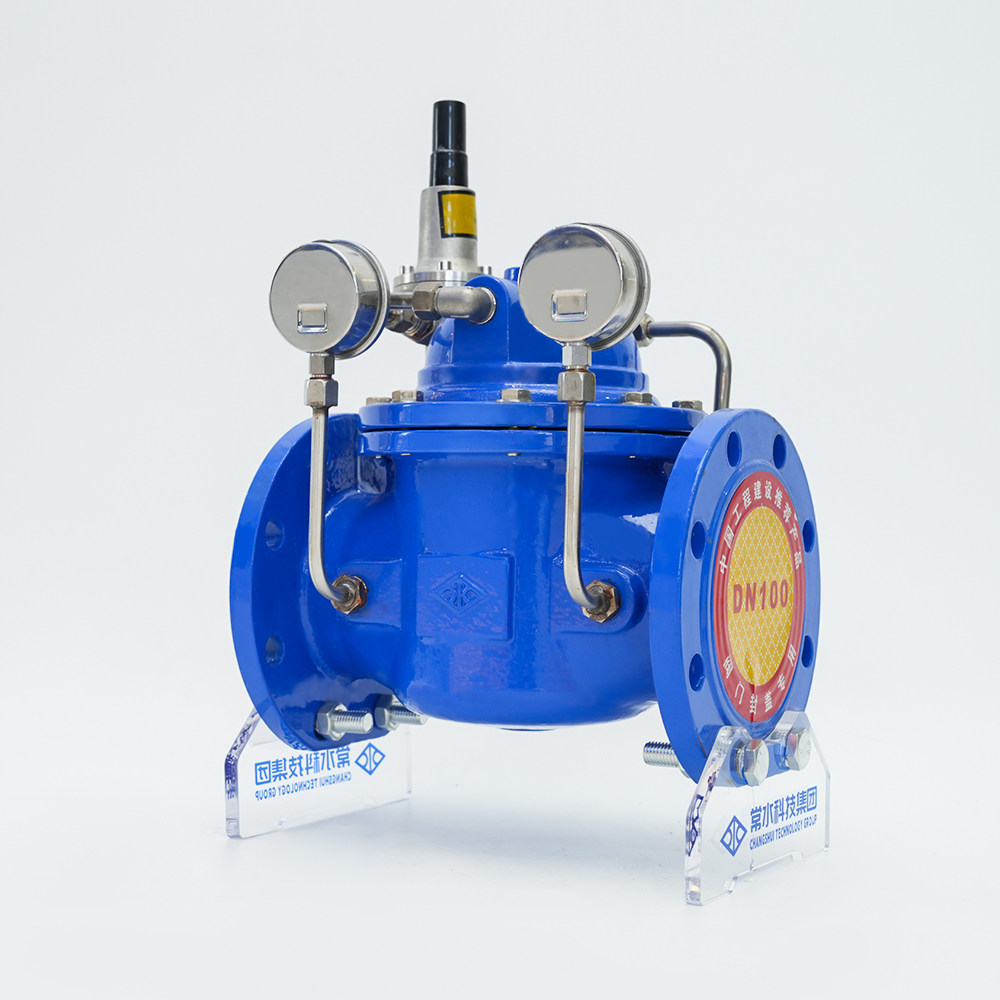

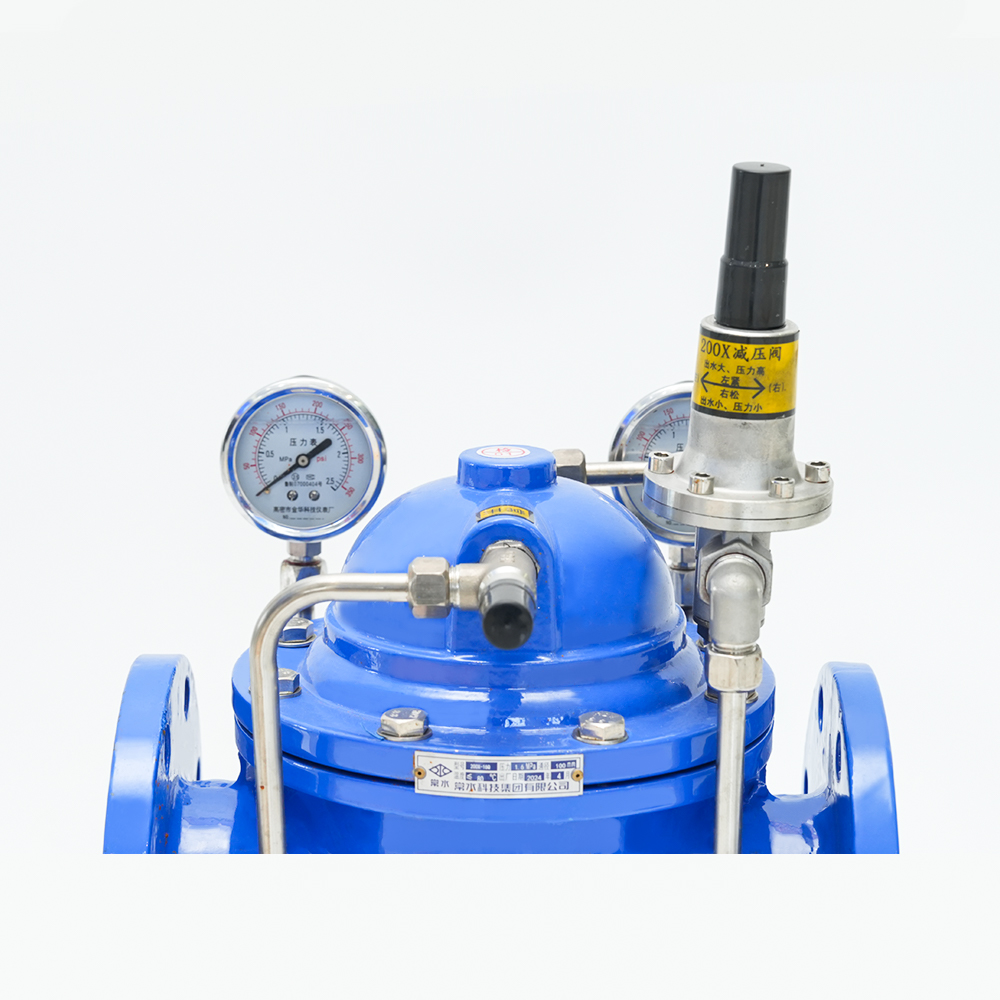

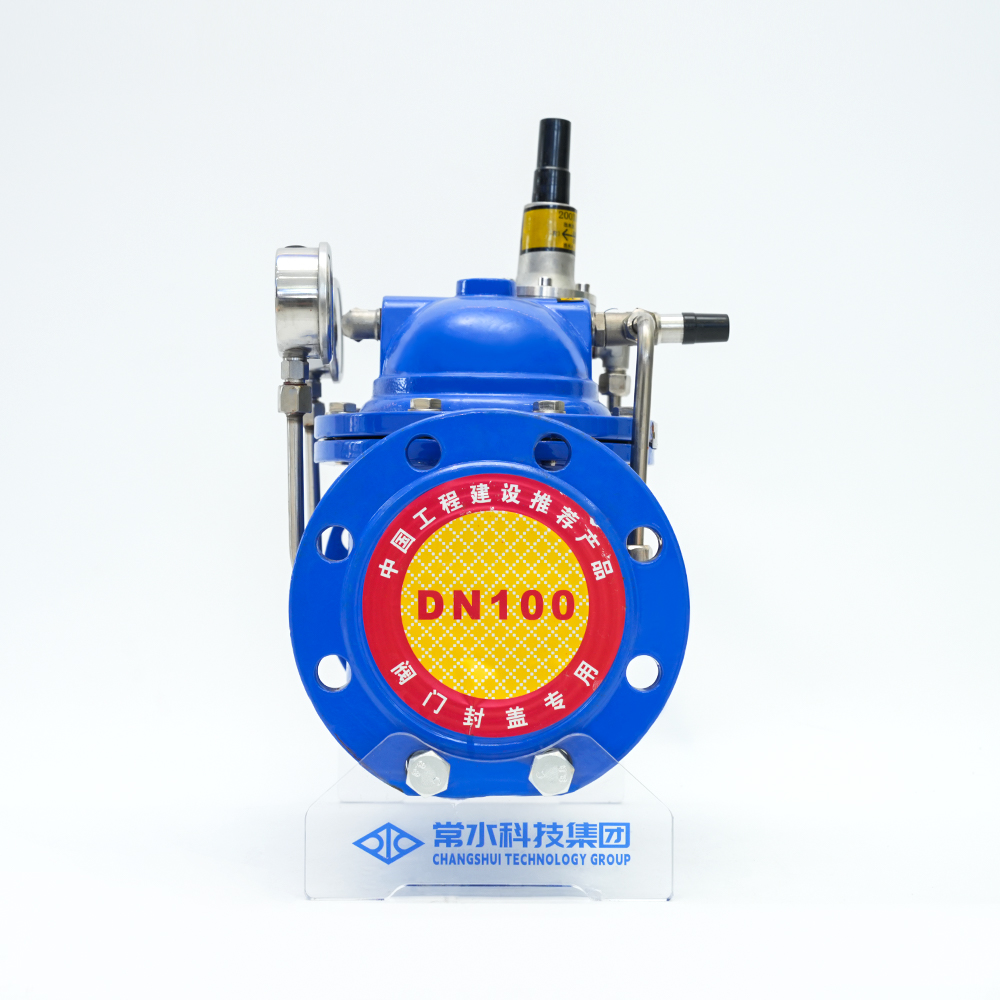

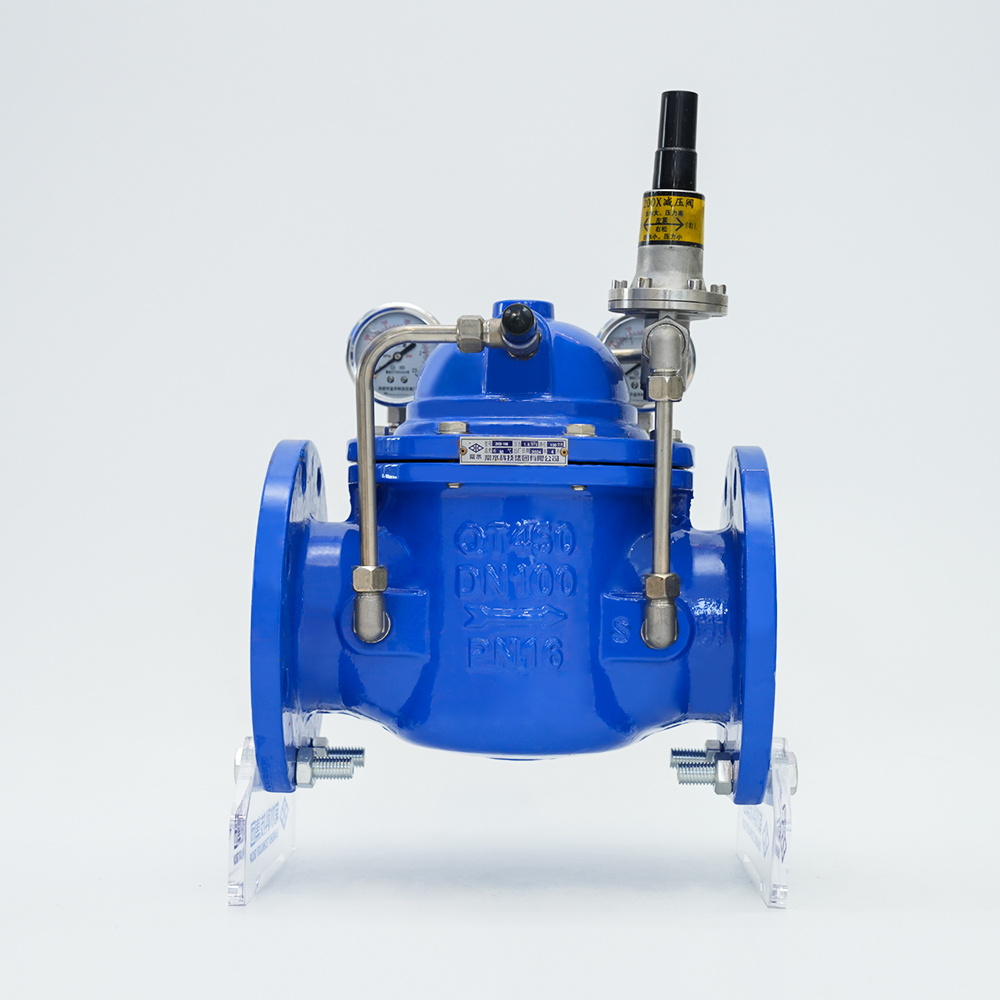

Adjustable Pressure Reducing Valve 200X-16Q

The adjustable pressure-reducing valve is a diaphragm-type hydraulically operated type, installed in the water supply and drainage system, and controls the outlet pressure of the main valve to a fixed value. The inlet pressure can be reduced to the required outlet pressure by adjusting the pilot valve and the outlet pressure can be kept stable by relying on the energy of the medium itself, that is, the outlet pressure does not change due to changes in inlet pressure or outlet flow. When the pressure in front of the valve is lower than the set pressure behind the valve, the main valve will automatically close slowly.

  • Adjustable Pressure Reducing Valve 200X-16Q
  • Adjustable Pressure Reducing Valve 200X-16Q
  • Adjustable Pressure Reducing Valve 200X-16Q
  • Adjustable Pressure Reducing Valve 200X-16Q
  • Adjustable Pressure Reducing Valve 200X-16Q
  • Adjustable Pressure Reducing Valve 200X-16Q
  • Adjustable Pressure Reducing Valve 200X-16Q
Contact us

PREV：Digital Lock Balancing Valve SP45F-16QNEXT：Rising Stem Soft Seal Gate Valve Z41X-16G
Description

Body material

Nodular cast iron

Model

200X-16Q

Specification

DN50-600

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2016

Installation Requirements

1. Please refer to the Y series adjustable pressure-reducing valve installation requirements and the following requirements for installation.

2. It is recommended to install an exhaust valve in the pipe network system so that the pressure-reducing valve can work stably.

3. When installing, pay attention to the direction of the arrow mark on the valve body. To facilitate maintenance, a certain amount of space should be left around the pressure-reducing valve.

4. The inlet and outlet pressure should not be less than 0.2Mpa. If it is less than 0.2Mpa, the stability performance will become worse (the outlet pressure error will increase).

Product Use

This product is designed for high-rise and super-high-rise buildings. It is an ideal product for solving domestic water and fire-fighting water systems in high-rise buildings where the requirements are large and the sensitivity is high. Its performance is even more superior, completely replacing the intermediate water tank and saving the cost of the intermediate water tank in the building. Expand the usable area of ​​the building.

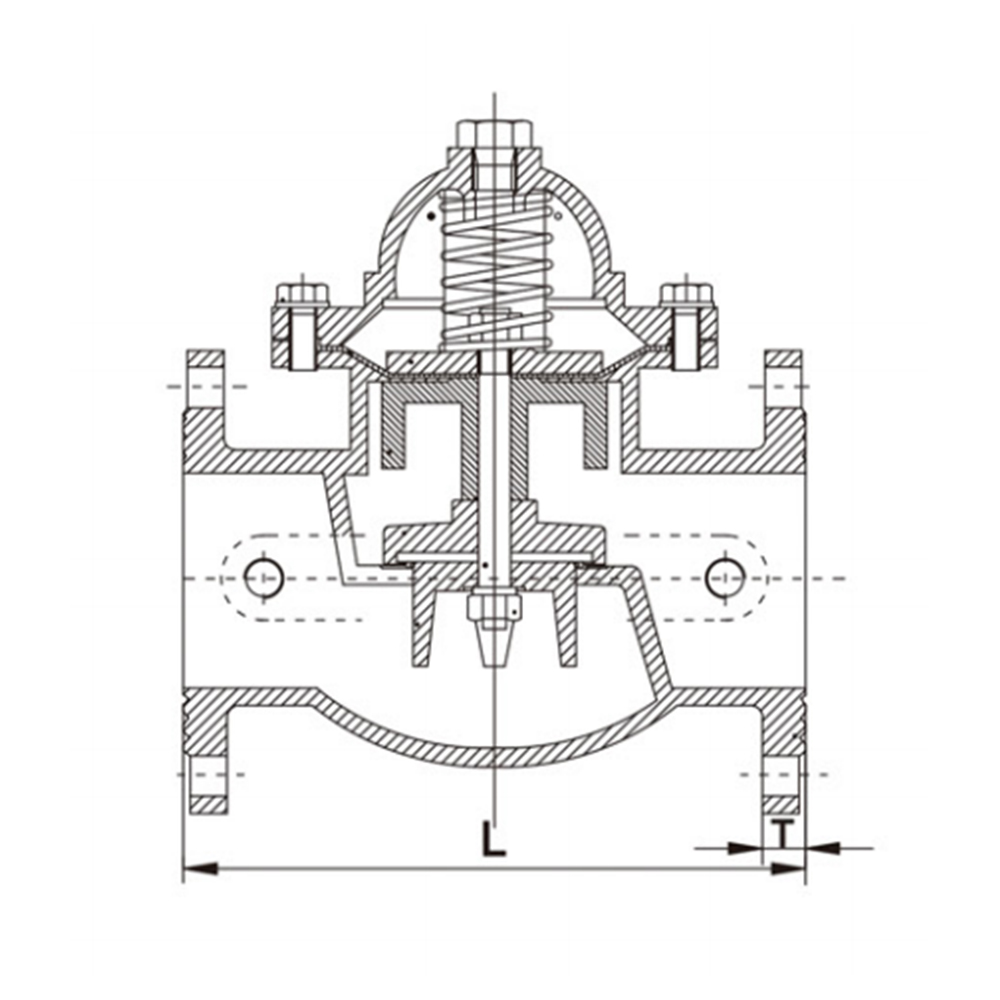

Installation Diagram
