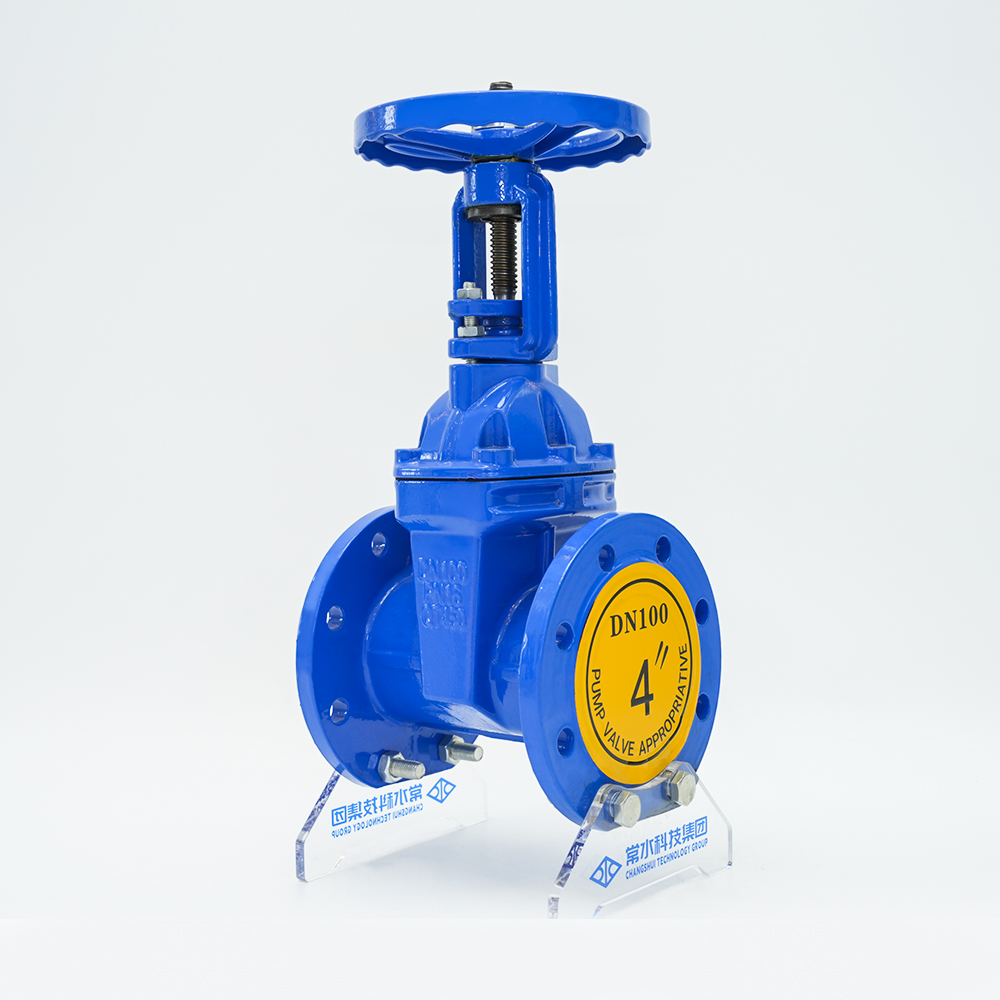

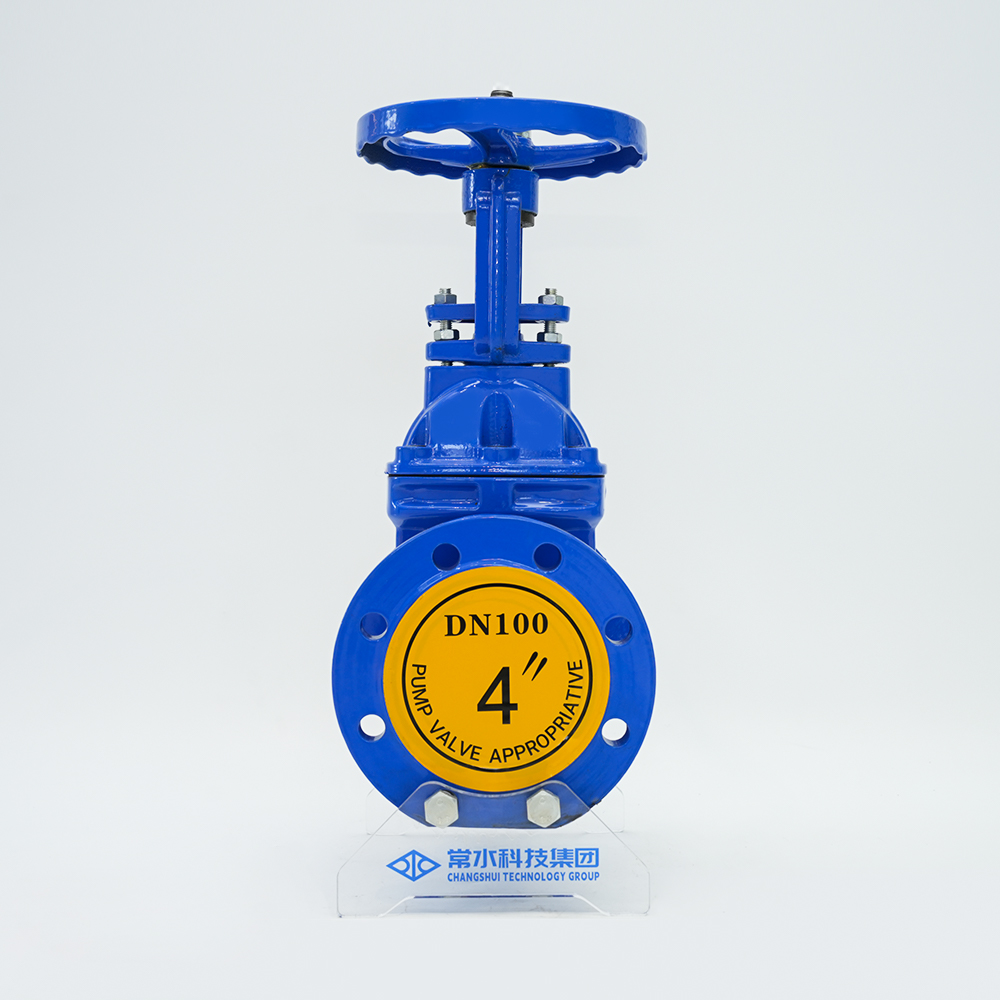

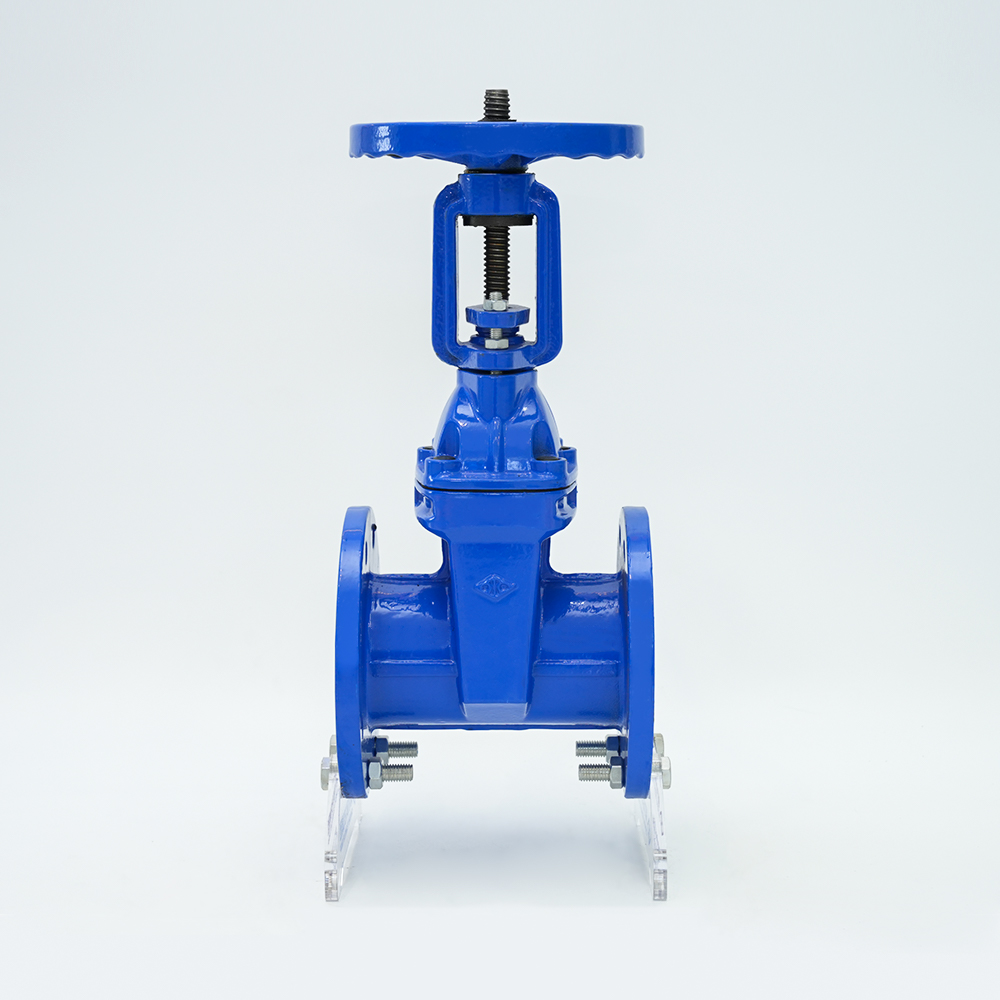

Rising Stem Soft Seal Gate Valve Z41X-16G

The gate valves produced by our factory use the overall rubber coating of the gate plate to produce deformation compensation to achieve a good sealing effect, overcoming the common phenomena of poor sealing, leakage and rust of gate valves. It is installed on various pipelines and used as a two-way cut-off. It is widely used in pipeline projects such as water supply and drainage, fire protection, air conditioning, water treatment, municipal administration, shipbuilding, electricity, construction, and food to control fluids.

  • Rising Stem Soft Seal Gate Valve Z41X-16G
  • Rising Stem Soft Seal Gate Valve Z41X-16G
  • Rising Stem Soft Seal Gate Valve Z41X-16G
  • Rising Stem Soft Seal Gate Valve Z41X-16G
  • Rising Stem Soft Seal Gate Valve Z41X-16G
  • Rising Stem Soft Seal Gate Valve Z41X-16G
Contact us

PREV：Adjustable Pressure Reducing Valve 200X-16QNEXT：Flexible Rubber Connector Filter KXT-16
Description

Body material

Nodular cast iron

Model

Z41X-16Q

Specification

DN40-1000

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2016

Product Overview

The flange rising stem gate valve adopts an external valve stem structure, and the valve stem rotates and moves axially. The gate moves up and down with the valve stem to open and close, and the valve opening can be directly observed. It is widely used in pipeline projects such as water supply and drainage, fire protection, air conditioning, water treatment, municipal administration, shipbuilding, electric power, construction, and food to transport fluid pipelines as a control fluid.

Features

1. The fluid resistance is small, and the sealing surface is less eroded and eroded by the medium.

2. Opening and closing require less effort.

3. The flow direction of the medium is not restricted, the flow is not disturbed, and the pressure is not reduced.

4. Simple shape, short structural length, good manufacturing process, and wide application range.


Product Features

Nominal pressure: 1.0-2.5MPa DN: 50-1200
Operating temperature: 0-80°C Applicable medium: clean/sewage, oil
Flange standard: GB/T17241-98 Length standard: GB12221-89

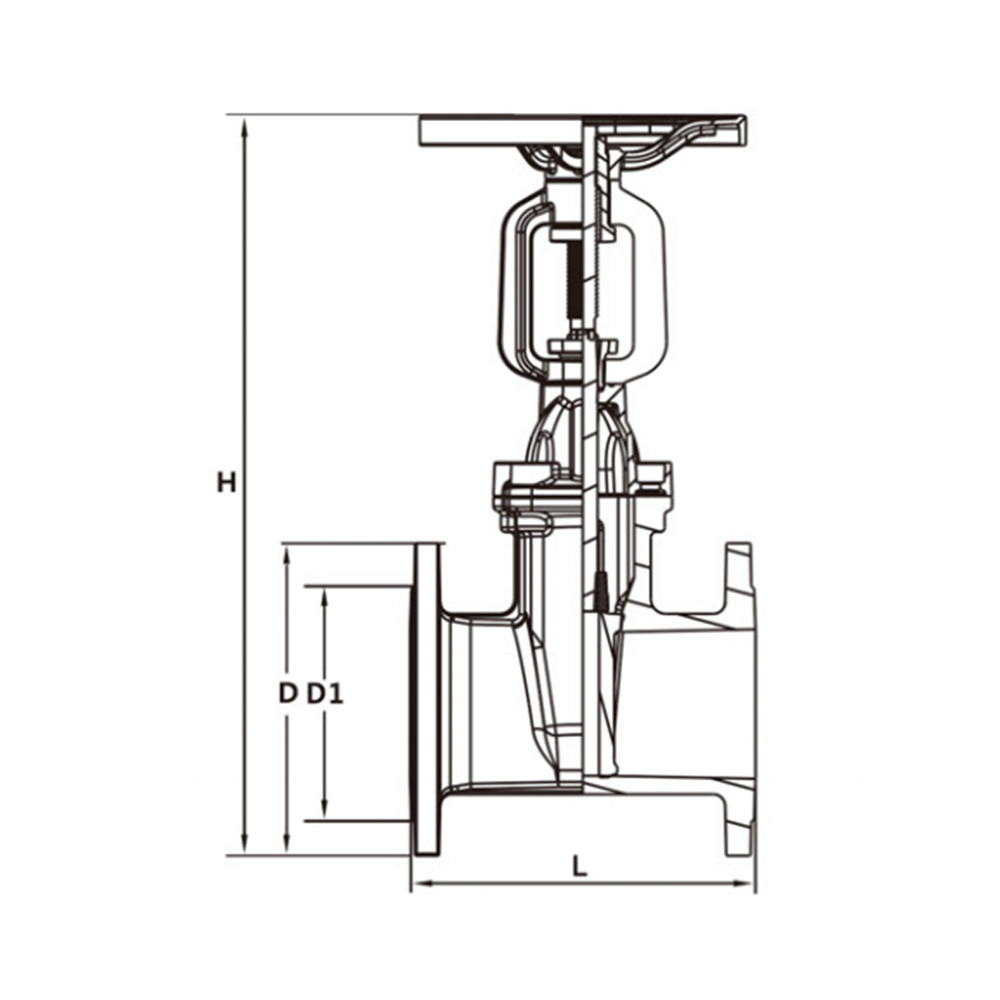

Product Parameters

Z41X-16Q DN 50 65 80 100 125 150 200 250 300 350
L 178 190 203 229 254 267 292 330 356 381
H 365 406 465 520 630 690 870 1050 1210 1300
D outer circle 165 185 200 220 250 285 340 405 460 520
n number of holes 4 4 8 8 8 8 12 12 12 16
D1 Center 125 145 160 180 210 240 295 355 410 470
Handwheel 180 215 285 330 380 465
