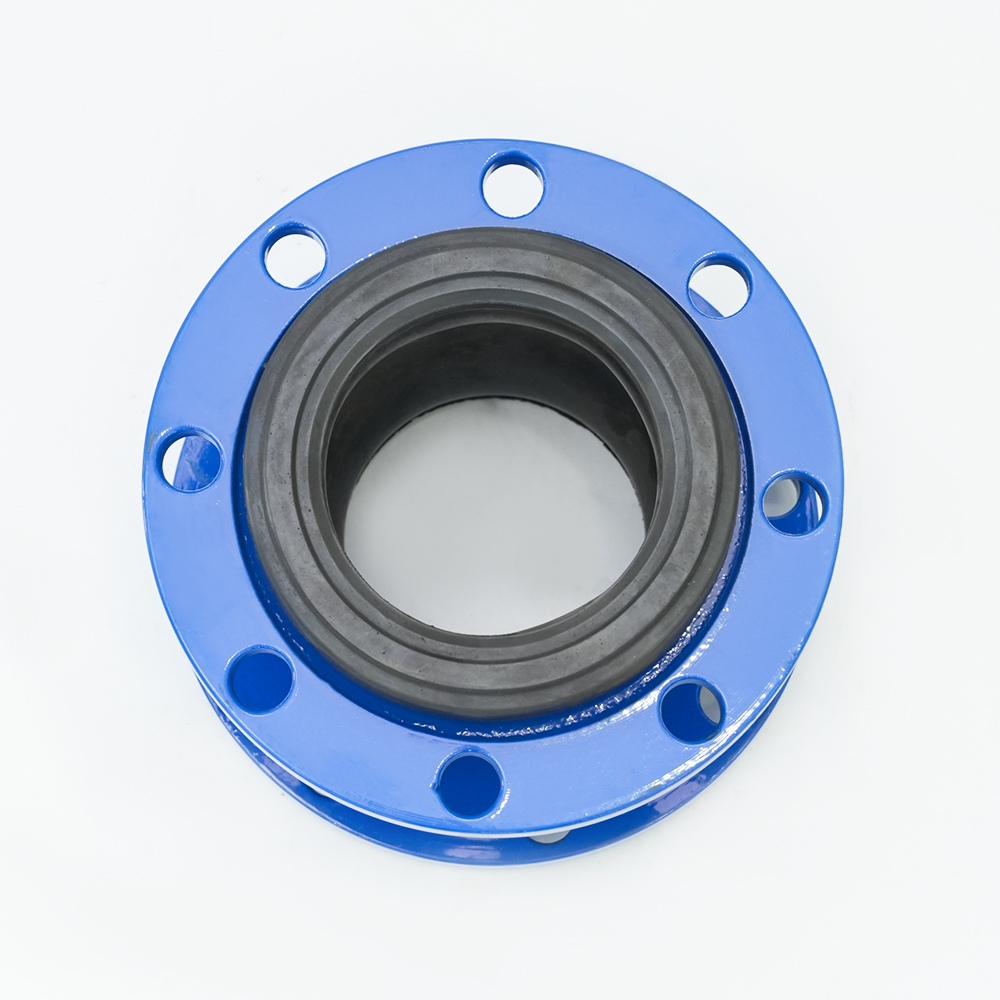

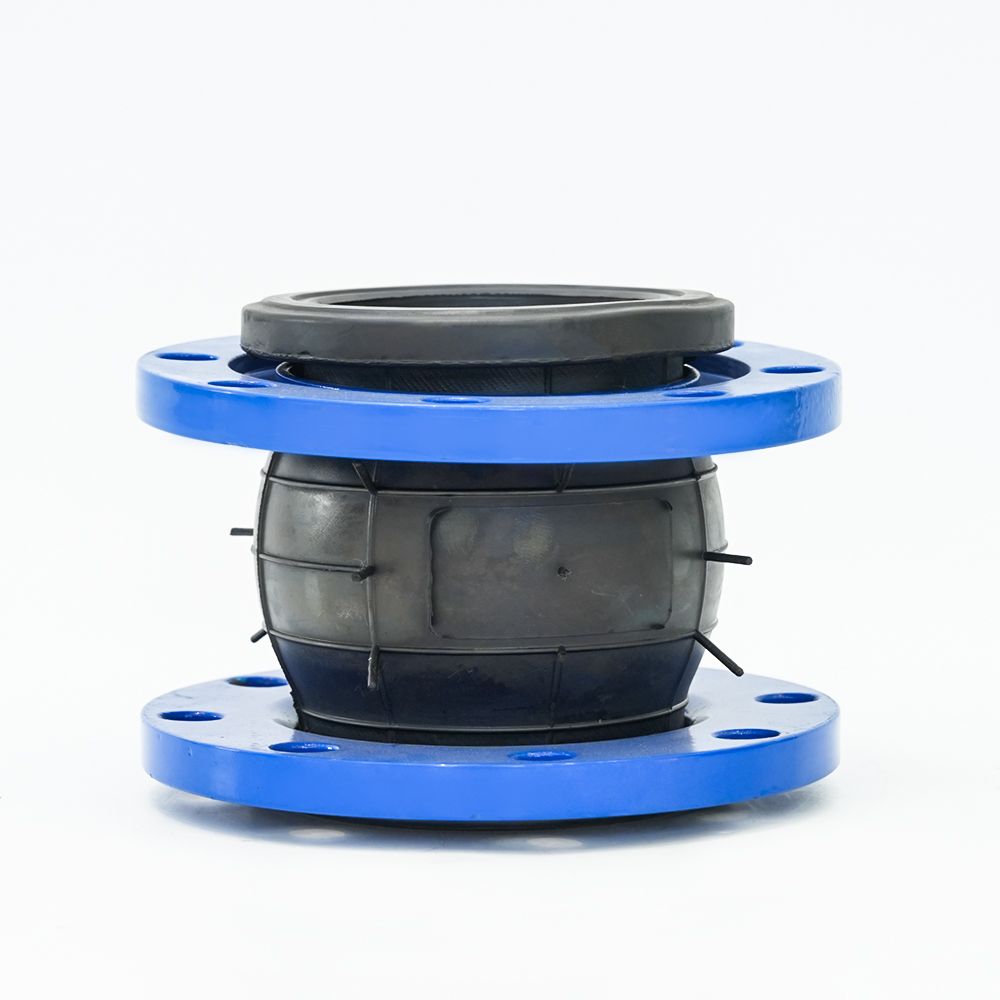

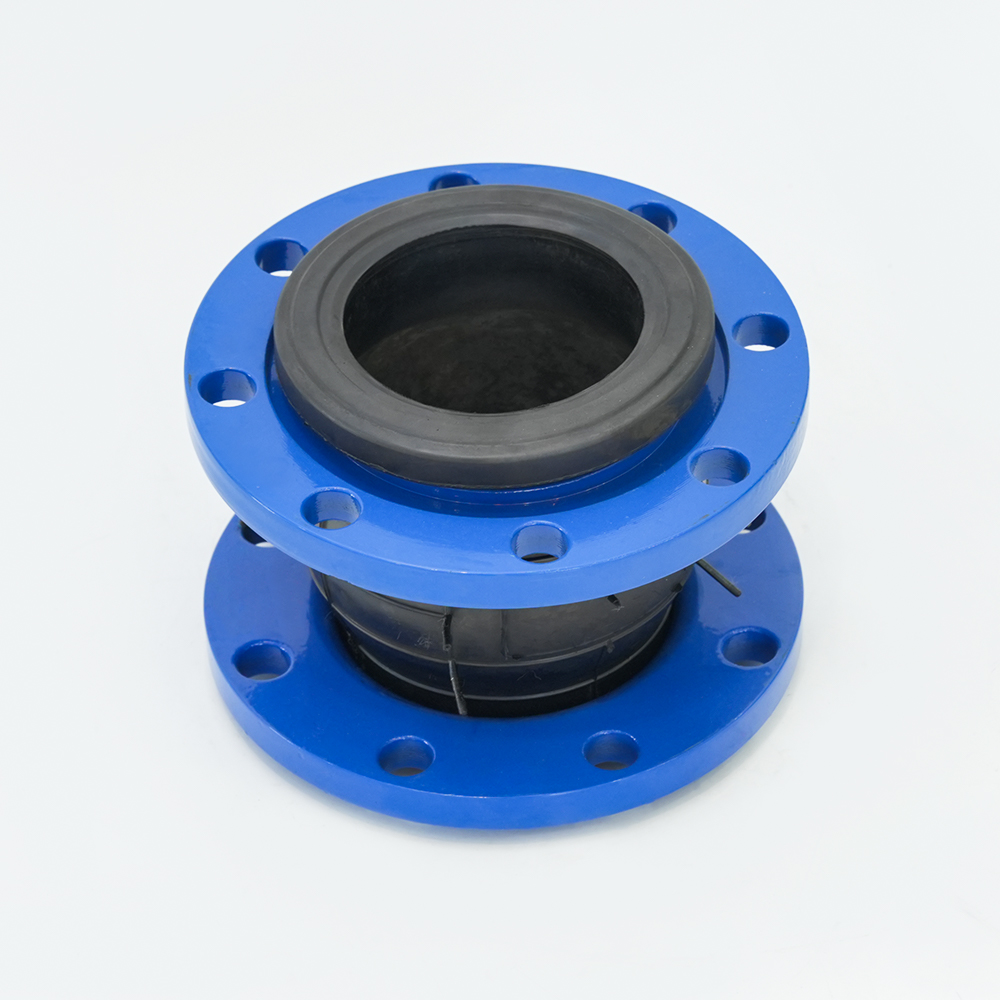

Flexible Rubber Connector Filter KXT-16

Rubber soft joints are often used behind water pumps. They can stretch axially, move laterally, and shift angularly. Since the water pump works, it will produce vibrations. If an all-steel connection is used, the nuts connecting the pipes will loosen, causing pipeline failures and other problems.

  • Flexible Rubber Connector Filter KXT-16
  • Flexible Rubber Connector Filter KXT-16
  • Flexible Rubber Connector Filter KXT-16
  • Flexible Rubber Connector Filter KXT-16
  • Flexible Rubber Connector Filter KXT-16
Contact us

PREV：Rising Stem Soft Seal Gate Valve Z41X-16GNEXT：Remote Control Float Valve 100X-16Q
Description

Model

KXT-16C

Specification

DN40-600

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2012

Product Overview

KXT rubber joint is a kind of rubber joint, also called a rubber soft joint or rubber shock-absorbing joint. It is made of colloid and two flanges through a special process, using an air blow molding process, and then vulcanized at high temperature. It is widely used to connect pump bodies and pipelines in pump stations, pump rooms, heating, air conditioning, ventilation, etc. that transport various fluid media. It can extend, compress, and shift positions, and can effectively prevent pipelines from being damaged due to foundation settlement.

Product Features

1. The single-ball rubber joint has good elasticity and long service life, especially in places with harsh installation environments. It has good adaptability.

2. Installed on the pipeline, it can compensate for the axial, transverse, and angular displacement of the pipeline, ensuring the stable operation of the pipeline, thereby extending the service life of the pipeline.

3. It has good vibration and noise reduction functions, which greatly optimizes the operating environment of pipeline lines.

4. Prevent static electricity to avoid accidents.


Main parts materials

Serial Number Main Part Material
1 Subject Polar rubber
2 Lining Nylon cloth
3 skeleton Hard steel wire
4 Flange QT450, cast steel

Product technical parameters

Specification (DN) 50 65 80 100 125 200 250 300 350 400 450 500
Valve Length(mm) 105 120 135 150 165 180 230 240 255 255 255 255
Test Pressure
(MPa)		 Housing 1.5-2.4
seal 1.1-1.76
Nominal Pressure(MPa) 1.0-1.6
Applicable temperature 0-80℃
Applicable media water and weakly corrosive fluids
