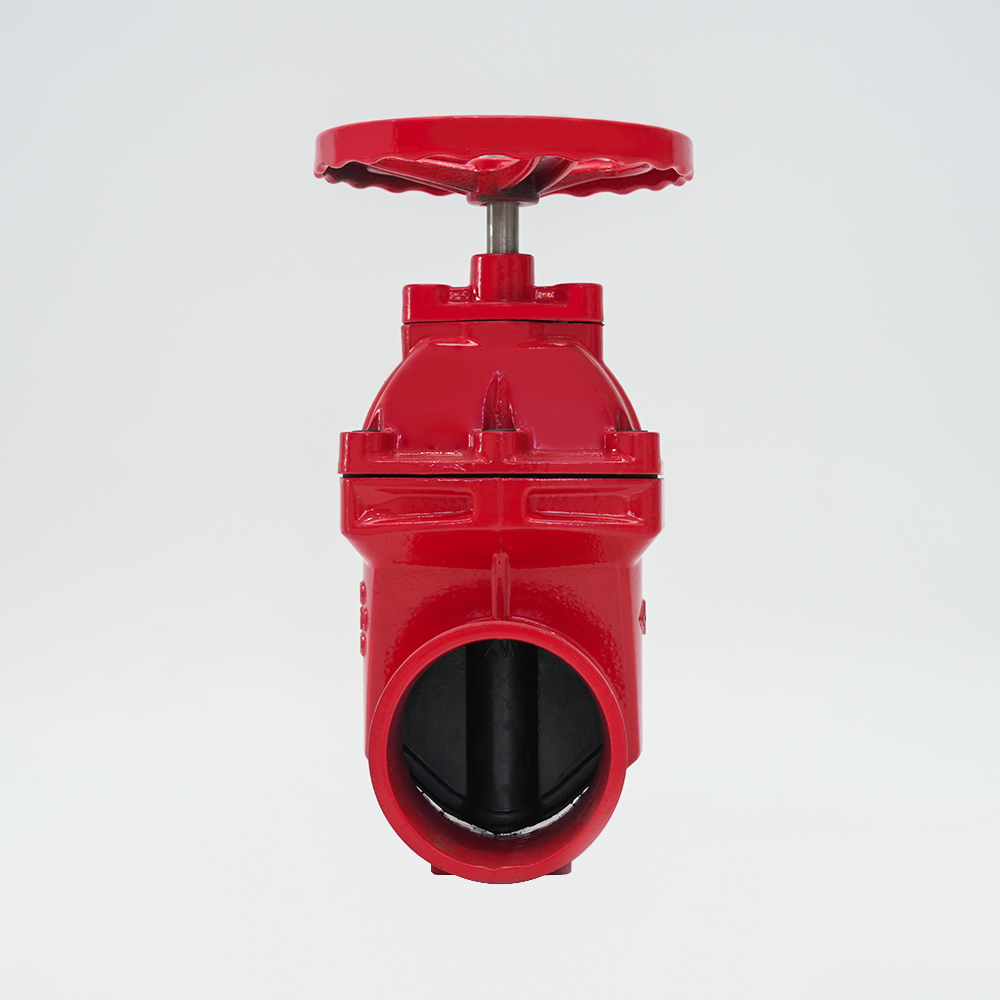

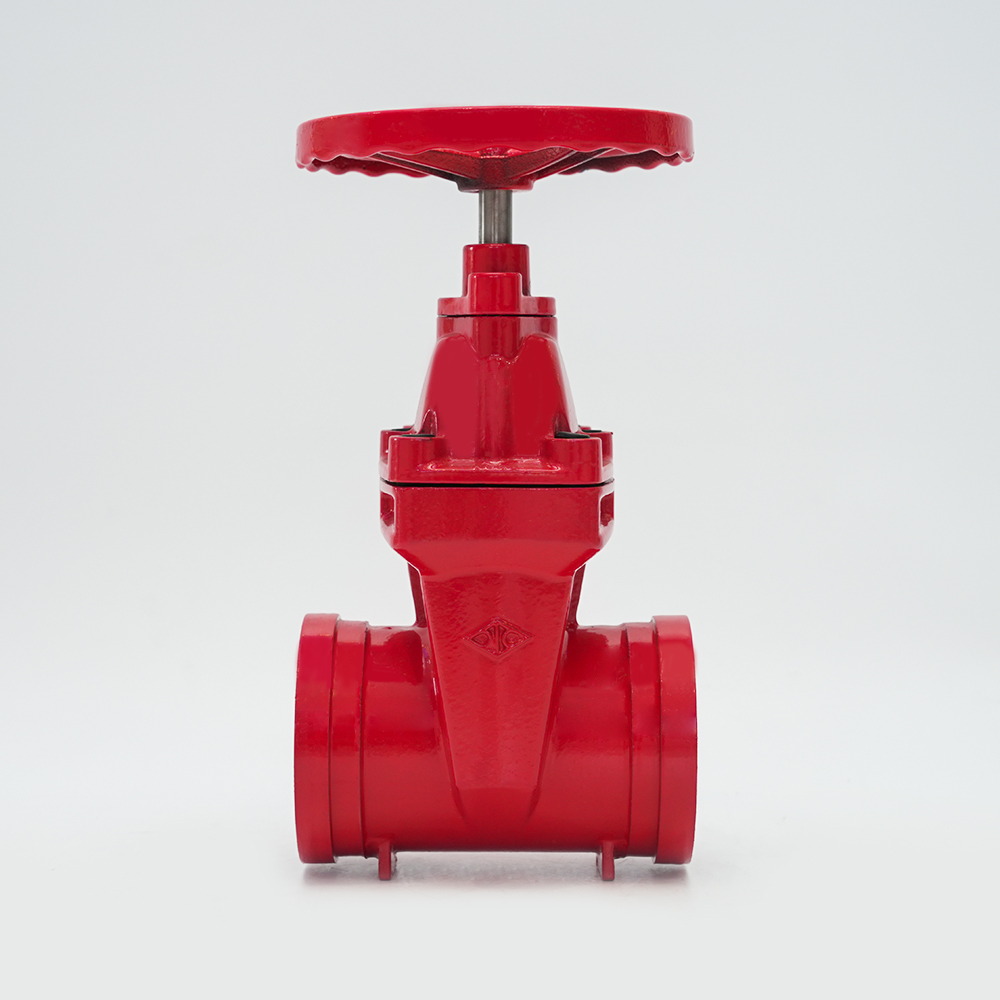

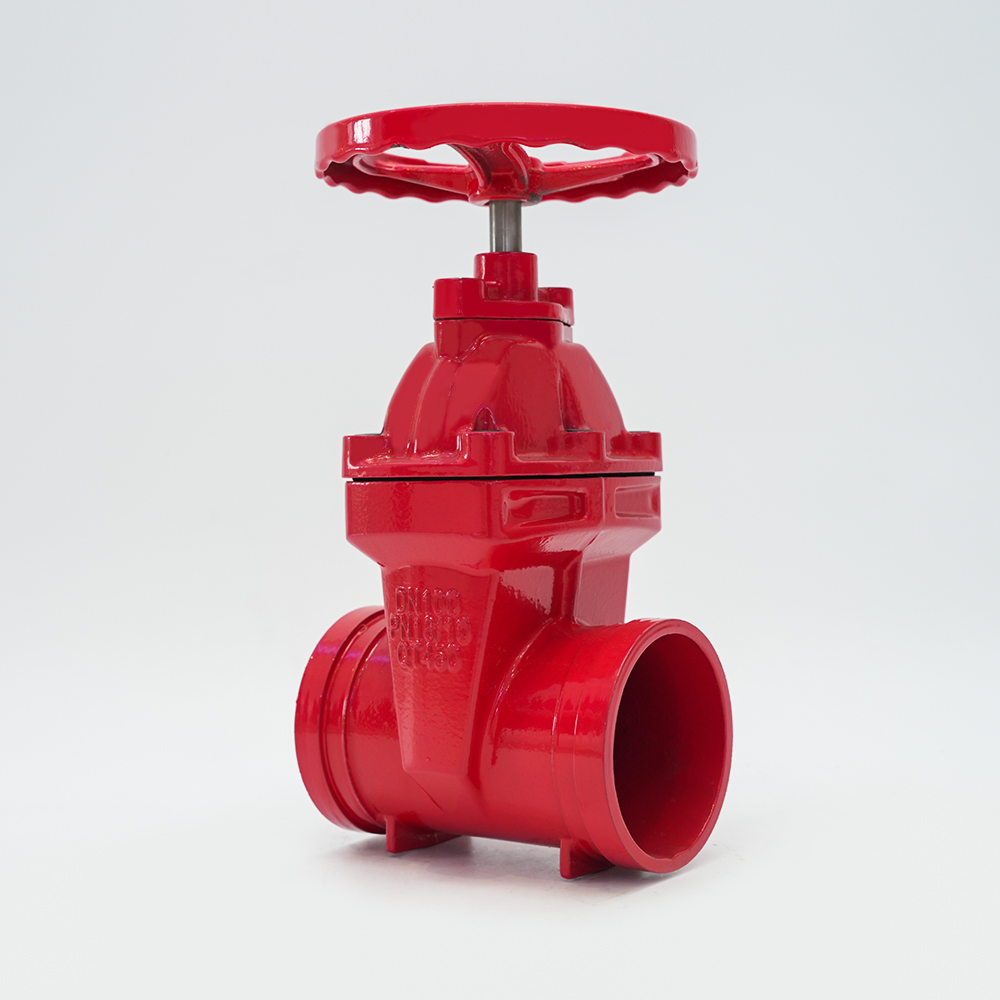

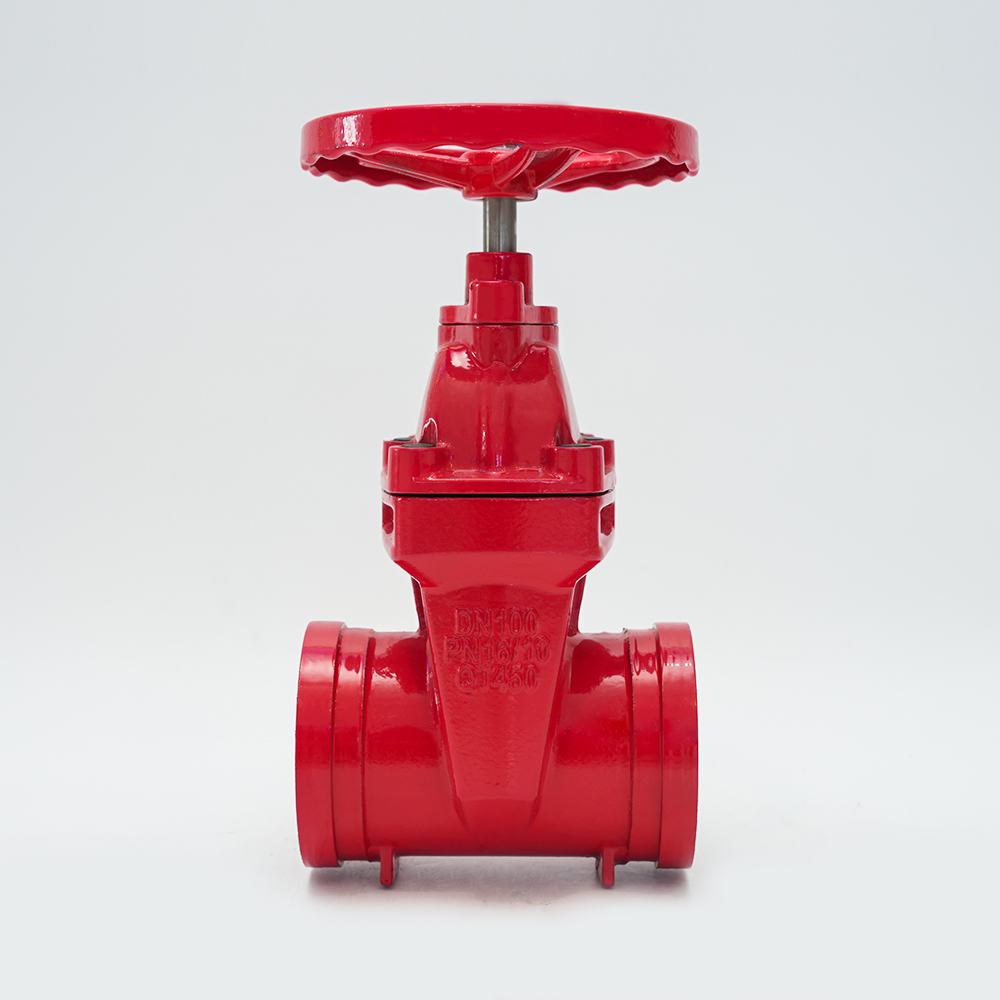

Grooved Concealed Stem Gate Valve Z85X-16Q

The gate valves produced by our factory use the overall rubber coating of the gate plate to produce deformation compensation to achieve a good sealing effect, overcoming the common phenomena of poor sealing, leakage, and rust of gate valves. It is installed on various pipelines and used as a two-way cut-off. It is widely used in pipeline projects such as water supply and drainage, fire protection, air conditioning, water treatment, municipal administration, shipbuilding, electricity, construction, and food to control fluids.

  • Grooved Concealed Stem Gate Valve Z85X-16Q
  • Grooved Concealed Stem Gate Valve Z85X-16Q
  • Grooved Concealed Stem Gate Valve Z85X-16Q
  • Grooved Concealed Stem Gate Valve Z85X-16Q
  • Grooved Concealed Stem Gate Valve Z85X-16Q
  • Grooved Concealed Stem Gate Valve Z85X-16Q
Contact us

PREV：Dark Stem Soft Seal Gate Valve Z45X-16QNEXT：Grooved Rising Stem Gate Valve Z81X-16Q
Description

Body material

Nodular cast iron

Model

Z85X-16Q

Specification

DN50-300

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2016

Product Overview

It is used to cut off, connect, and regulate the medium in the pipeline. It has good fluid control characteristics and closing and sealing performance. It is widely used in corrosive media such as metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas, and water supply and drainage. on the pipeline.

Features

1. The valve plate is entirely covered with glue, which has good covering performance and precise size to ensure the reliability of the seal;

2. The bottom of the valve adopts the same flat bottom type as the water pipe, which does not cause debris accumulation;

3. The entire valve is painted with non-toxic epoxy resin to prevent corrosion and rust. It can be used not only for drinking water systems but also for sewage systems;

4. The gland nut is used for self-tightening sealing; greatly improving the sealing performance;

5. It is extremely convenient to replace the sealing-wearing parts.

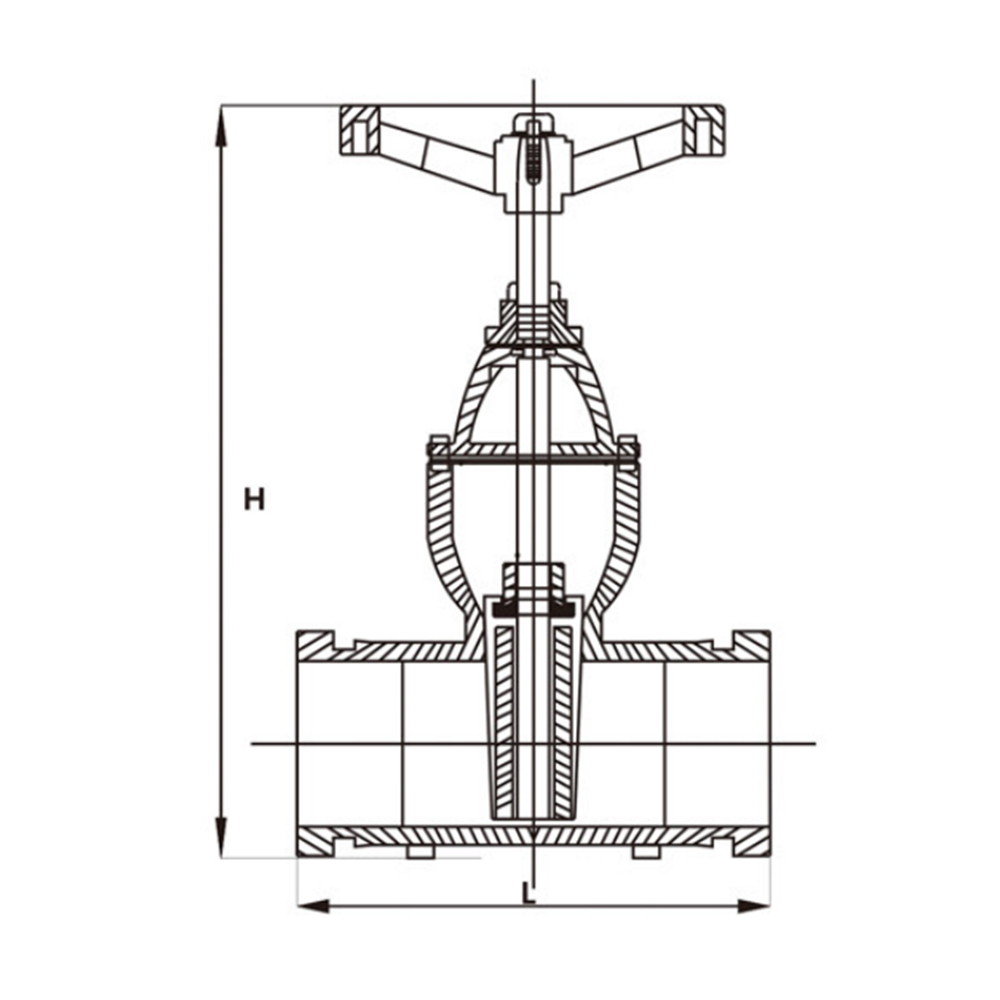

Product Parameters

Z85X-16Q DN 50  65  80  100  125  150  200  250  300
L 140  150  160  178  200  210  250  285  330
H 250  325  330  410  420  540  660  900  1000
Outer circle 60  76  89  108/114 140  159/165 219  273  325
Handwheel 180  215  285  330  380
