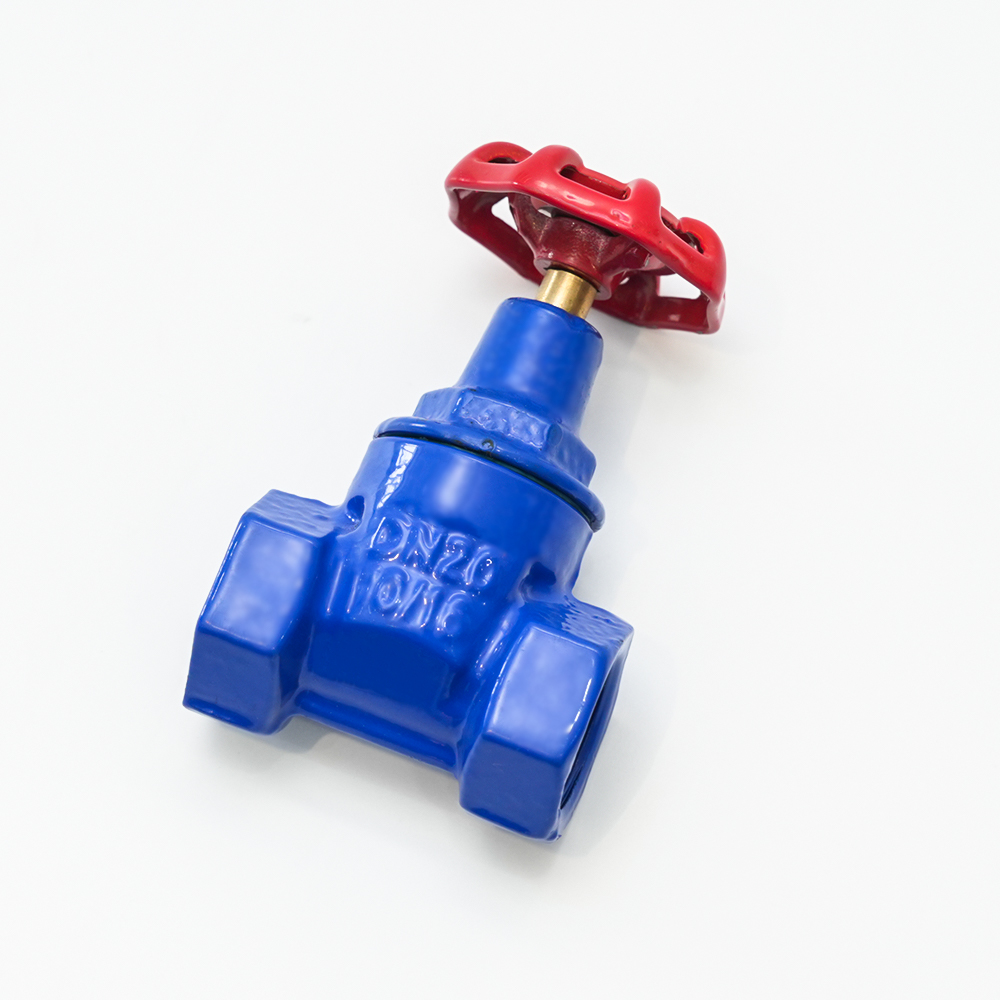

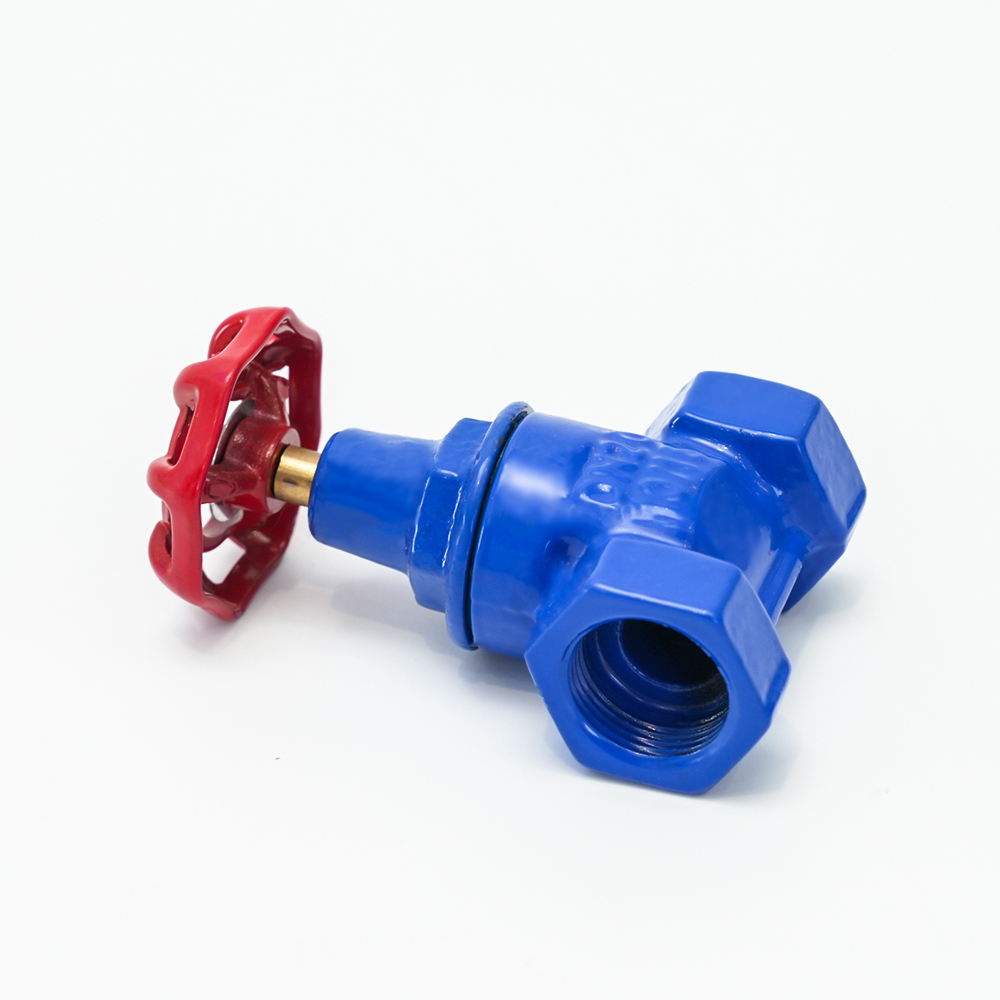

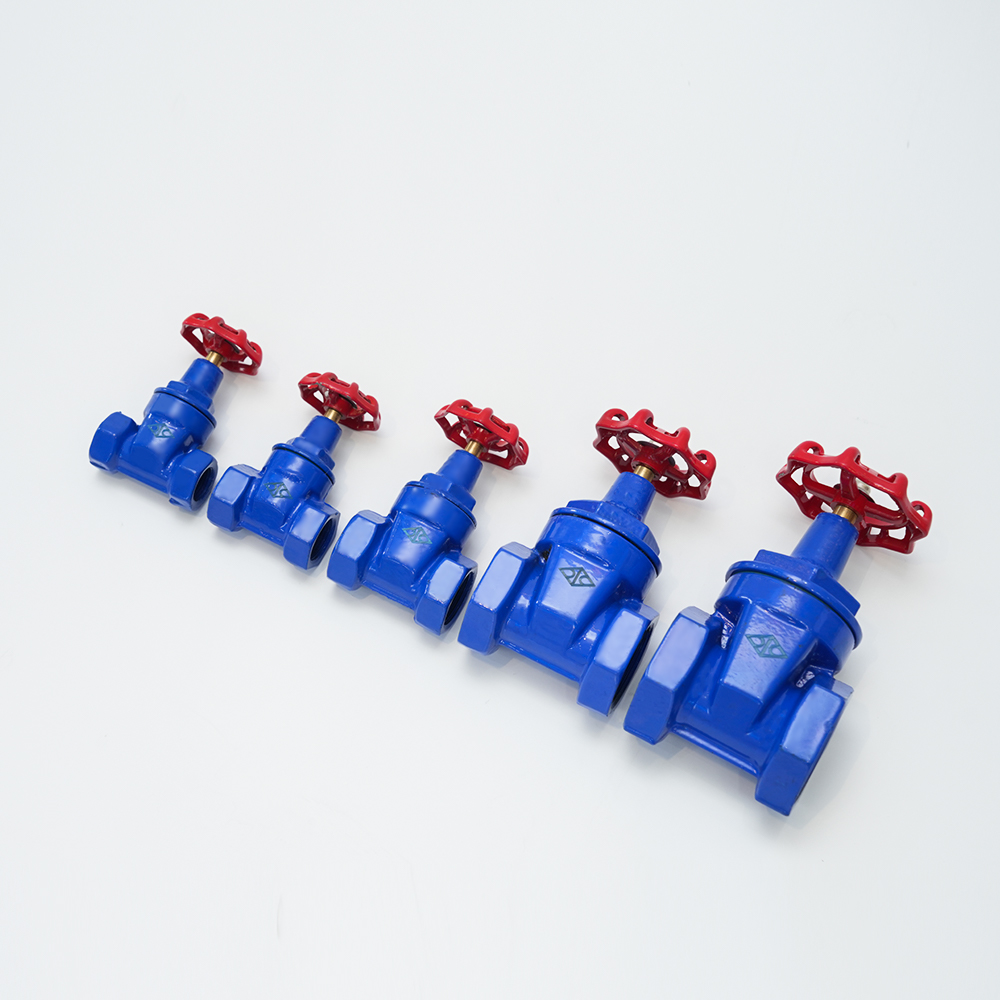

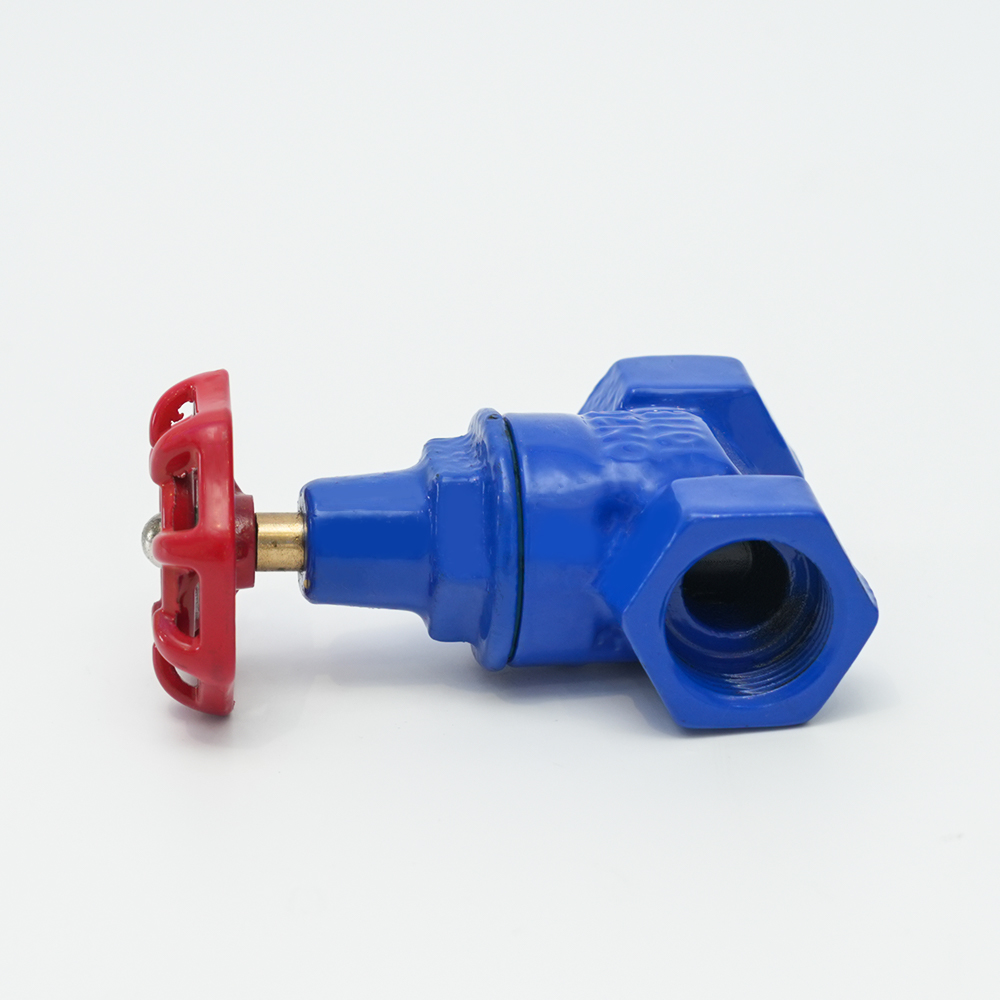

Threaded Elastic Seat Gate Valve Z15X-16Q

The threaded soft seal gate valve is a rubber (NBR) seal gate valve. The valve body is made of ductile cast iron and the valve stem is made of copper. It has the characteristics of good sealing performance, corrosion resistance, sensitive switching, and so on.

  • Threaded Elastic Seat Gate Valve Z15X-16Q
  • Threaded Elastic Seat Gate Valve Z15X-16Q
  • Threaded Elastic Seat Gate Valve Z15X-16Q
  • Threaded Elastic Seat Gate Valve Z15X-16Q
  • Threaded Elastic Seat Gate Valve Z15X-16Q
  • Threaded Elastic Seat Gate Valve Z15X-16Q
Contact us

PREV：Rising Stem Soft Seal Gate Valve Z41X-16GNEXT：No next article
Description

Body material

Nodular cast iron

Model

Z15X-16Q

Specification

DN15-100

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2014

Product Overview

This valve is a rubber (NBR) sealed gate valve widely used in water supply and drainage pipeline systems in electric power, hydraulics, metallurgy, chemical industry, urban construction, and other industries as an opening, closing, or regulating device to control medium flow.

Product Features

A. The gate is fully covered with rubber, which has good coverage performance and precise size. Ensure sealing reliability;

B. The bottom of the valve adopts the same flat bottom type as the water pipe, which does not cause debris accumulation;

C. The entire valve is sprayed with non-toxic epoxy resin to prevent corrosion and rust. It can be used not only for drinking water systems but also for sewage systems.


Product Technical Parameters

Transmission: handwheel
Pressure level:1.0MPa-1.6MPa Design and manufacture: GB/T12232-2005
Medium used: water Structure length: GB/T12221-2005
Operating temperature: 0°C~ 80°C Connection: wire mouth
Nominal diameter: DN15-DN100 Pressure test: GB/T13927-92
