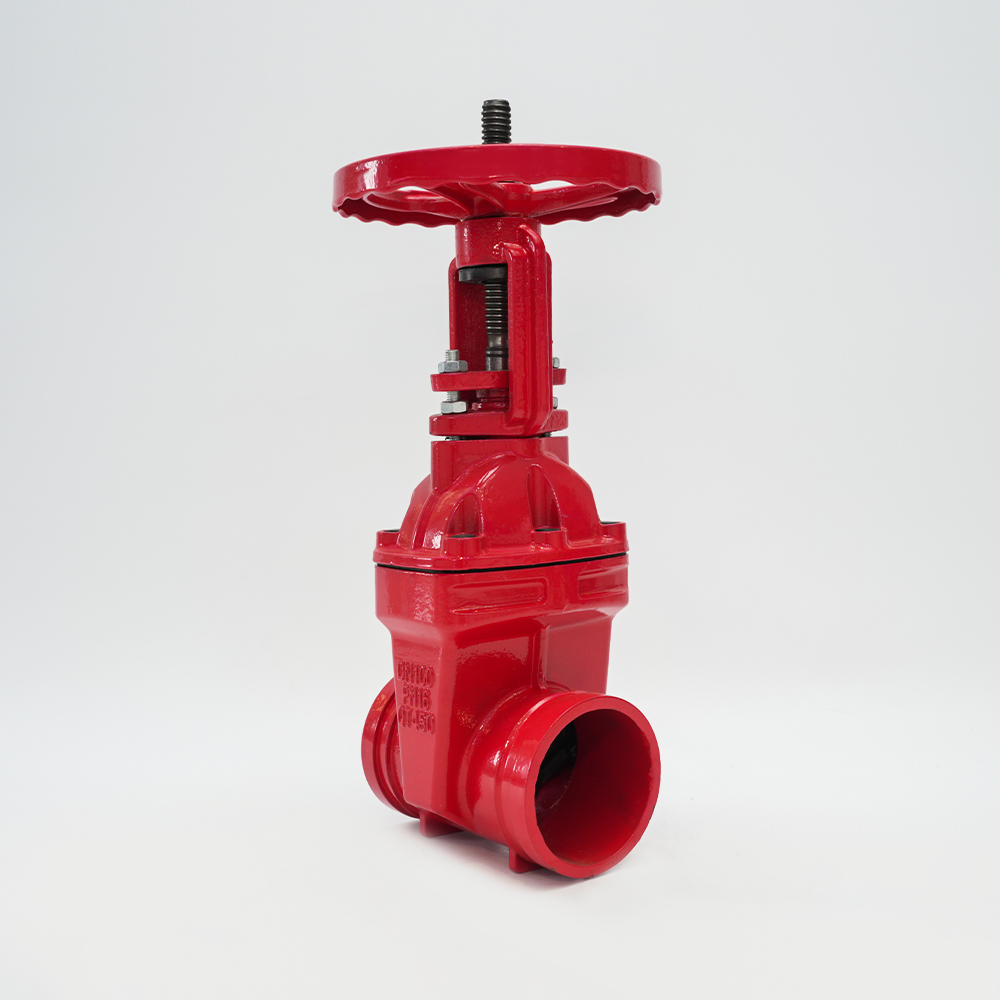

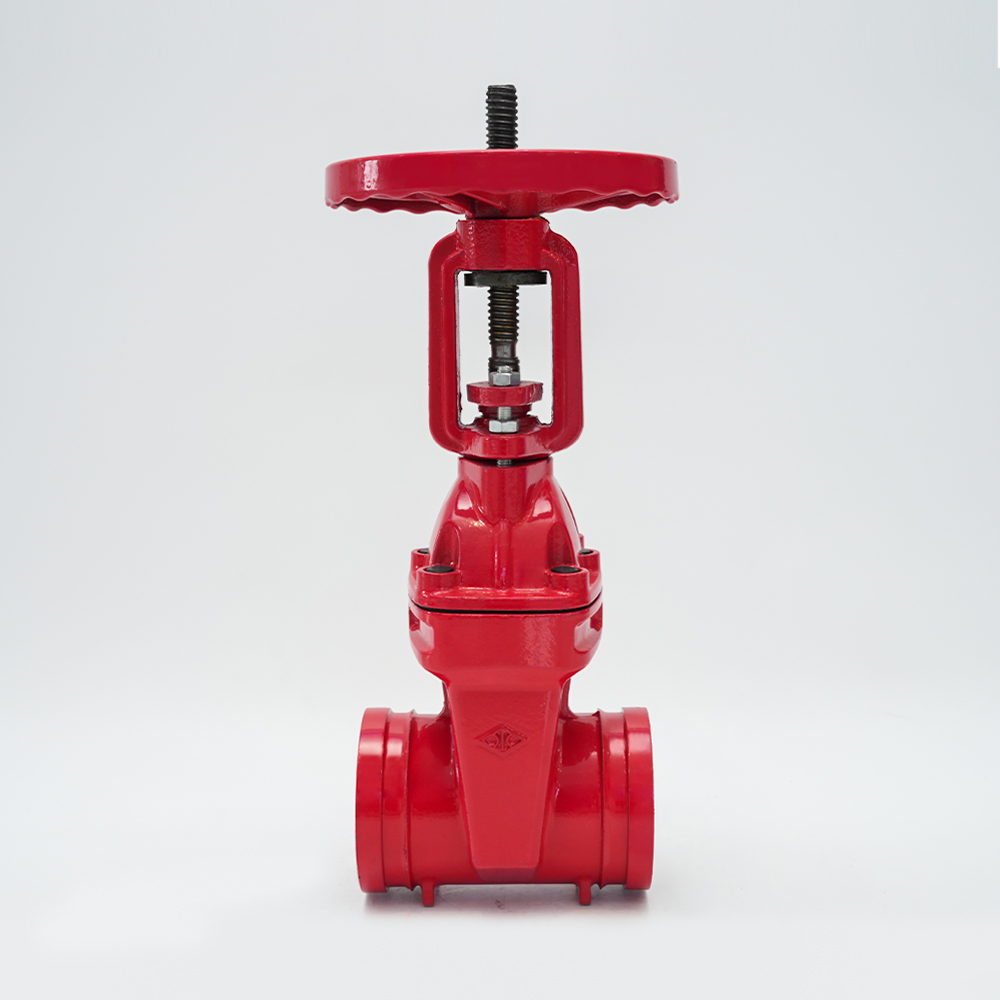

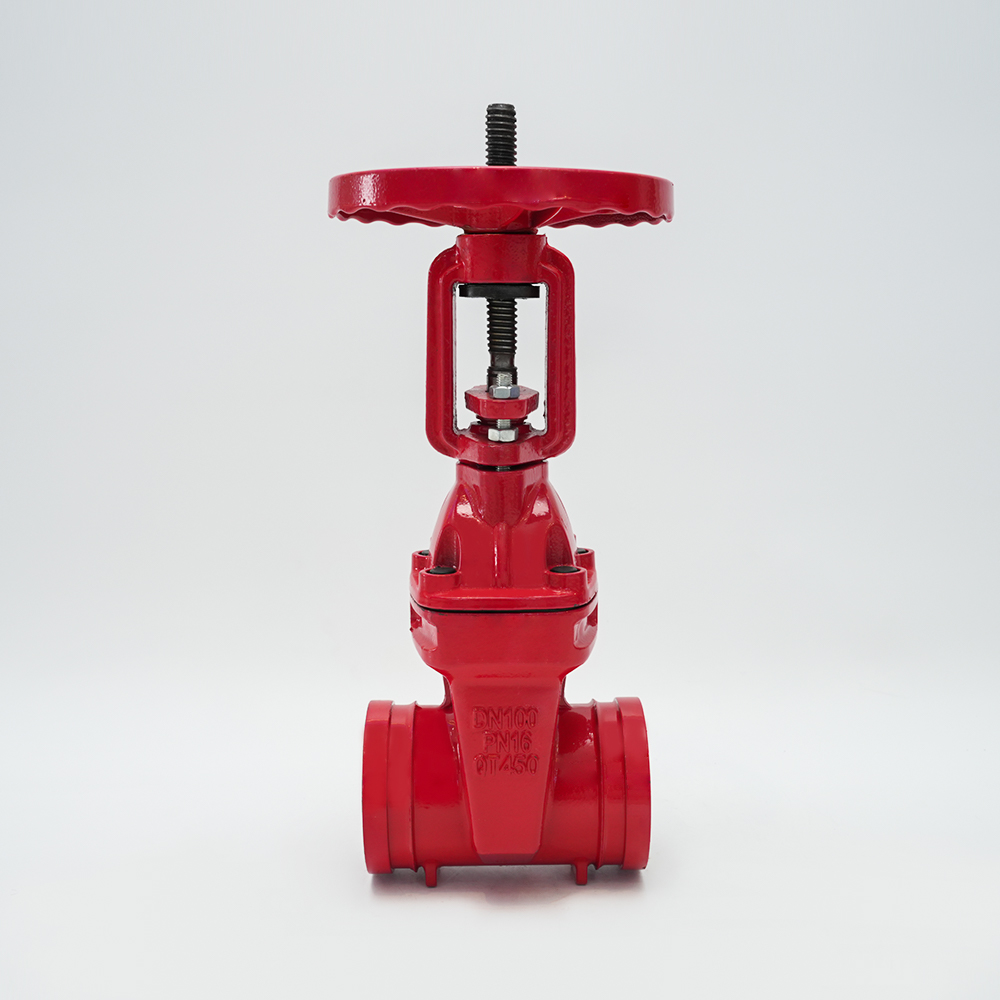

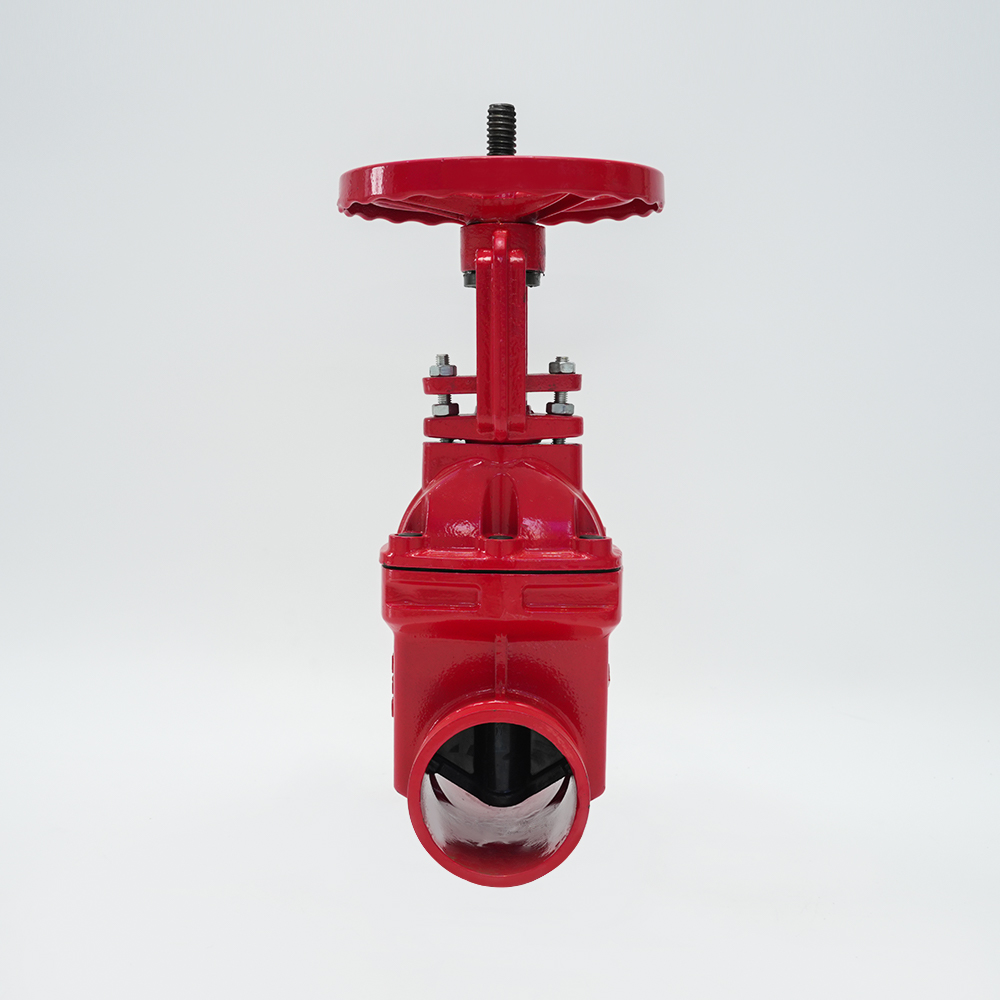

Grooved Rising Stem Gate Valve Z81X-16Q

The gate valves produced by our factory use the overall rubber coating of the gate plate to produce deformation compensation to achieve a good sealing effect, overcoming the common phenomena of poor sealing, leakage, and rust of gate valves. It is installed on various pipelines and used as a two-way cut-off. It is widely used in pipeline projects such as water supply and drainage, fire protection, air conditioning, water treatment, municipal administration, shipbuilding, electricity, construction, and food to control fluids.

  • Grooved Rising Stem Gate Valve Z81X-16Q
  • Grooved Rising Stem Gate Valve Z81X-16Q
  • Grooved Rising Stem Gate Valve Z81X-16Q
  • Grooved Rising Stem Gate Valve Z81X-16Q
  • Grooved Rising Stem Gate Valve Z81X-16Q
  • Grooved Rising Stem Gate Valve Z81X-16Q
Contact us

PREV：Grooved Concealed Stem Gate Valve Z85X-16QNEXT：Rising Stem Soft Seal Gate Valve Z41X-16G
Description

Body material

Nodular cast iron

Model

Z81X-16Q

Specification

DN50-300

Nominal pressure

1.0/1.6/2.5Mpa

Operating temperature

0-80°C

Applicable media

water

Design standards

GB/24924-2016

Product Overview

The flange rising stem gate valve adopts an external valve stem structure, and the valve stem rotates and moves axially. The gate moves up and down with the valve stem to open and close, and the valve opening can be directly observed. It is widely used in pipeline projects such as water supply and drainage, fire protection, air conditioning, water treatment, municipal administration, shipbuilding, electric power, construction, and food to transport fluid pipelines as a control fluid.

Features

1. The valve plate is fully covered with rubber, which has good covering performance and precise size, ensuring the reliability of the seal;

2. The bottom of the valve adopts the same flat bottom type as the water pipe, which does not cause debris accumulation;

3. The entire valve is painted with non-toxic epoxy resin to prevent corrosion and rust. It can be used not only for drinking water systems but also for sewage systems;

4. The gland nut is used for self-tightening sealing; greatly improving the sealing performance;

5. It is extremely convenient to replace the sealing-wearing parts.

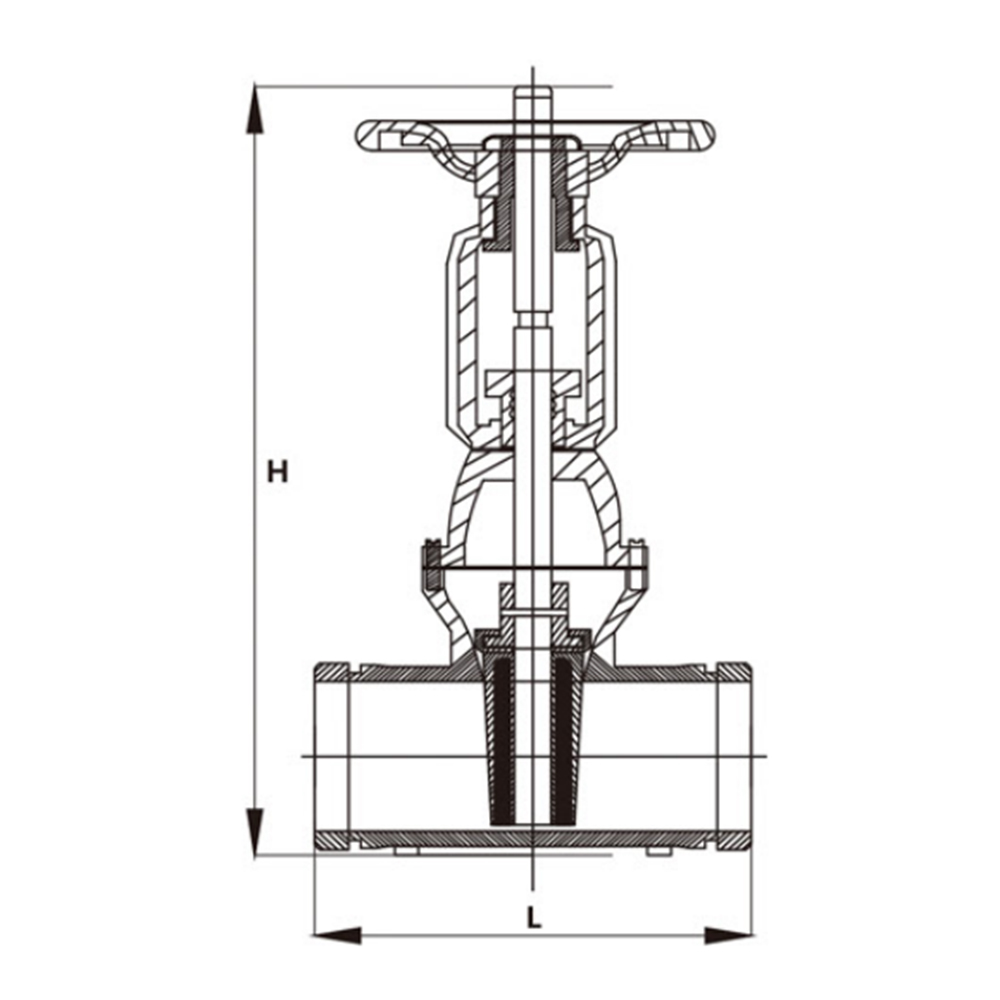

Product Parameters

Z81X-16Q DN 50  65  80  100  125  150  200  250  300
L 140  150  160  178  200  210  250  285  330
H 325  360  465  470  640  660  800  980  1100
Outer circle 60  76  89  108/114 140  159/165 219  273  325
Handwheel 180  215  285  330  380
